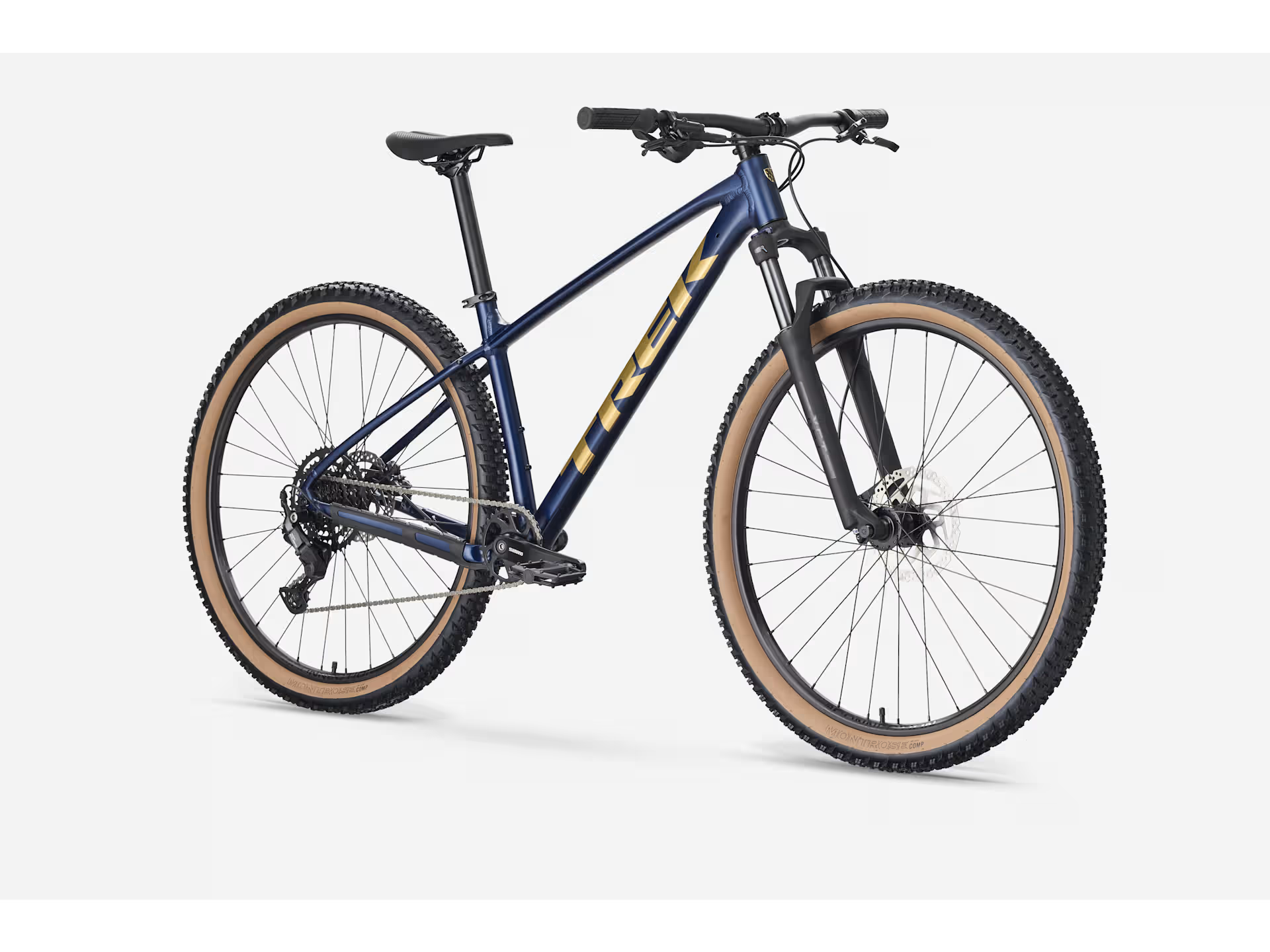

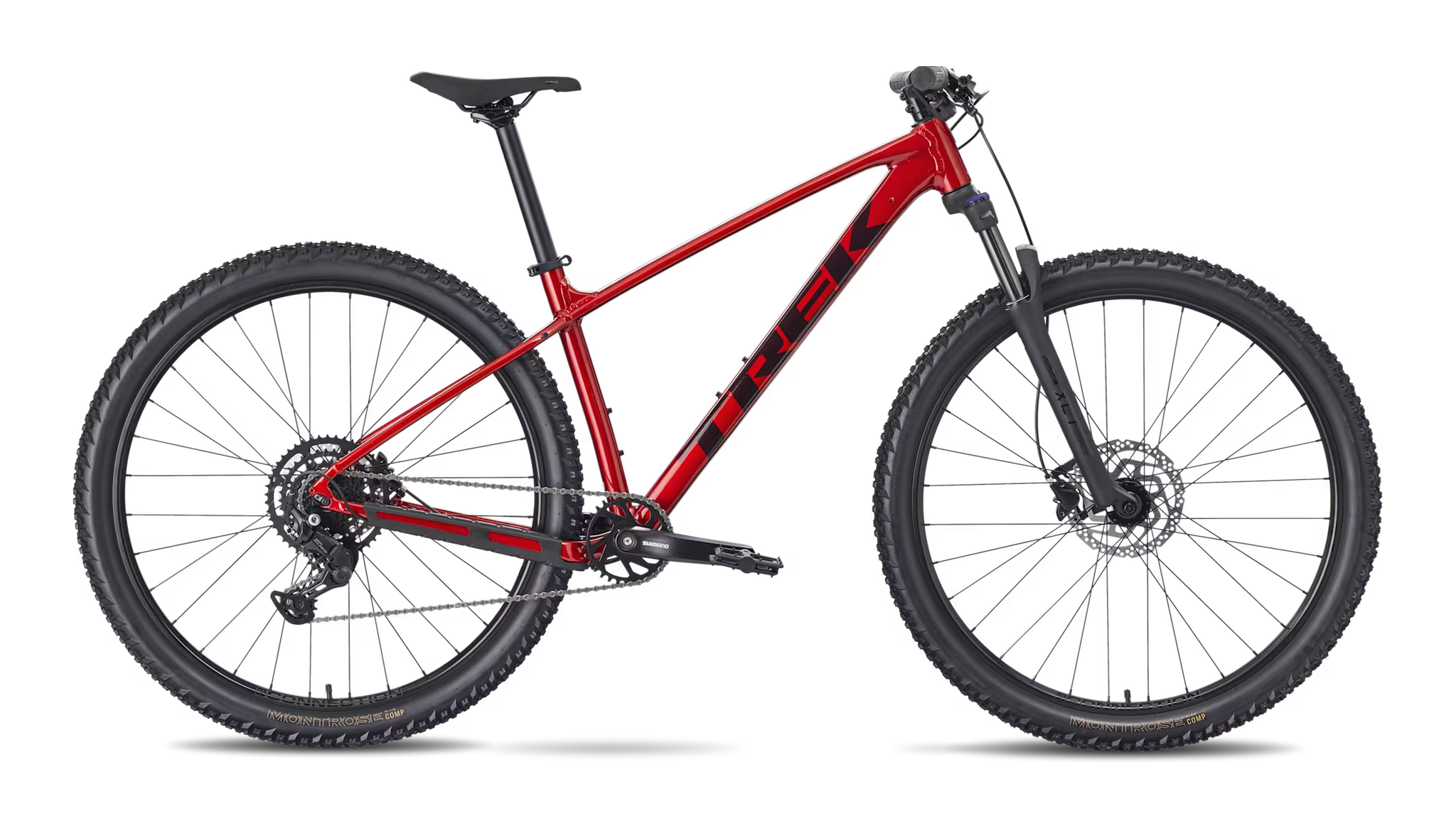

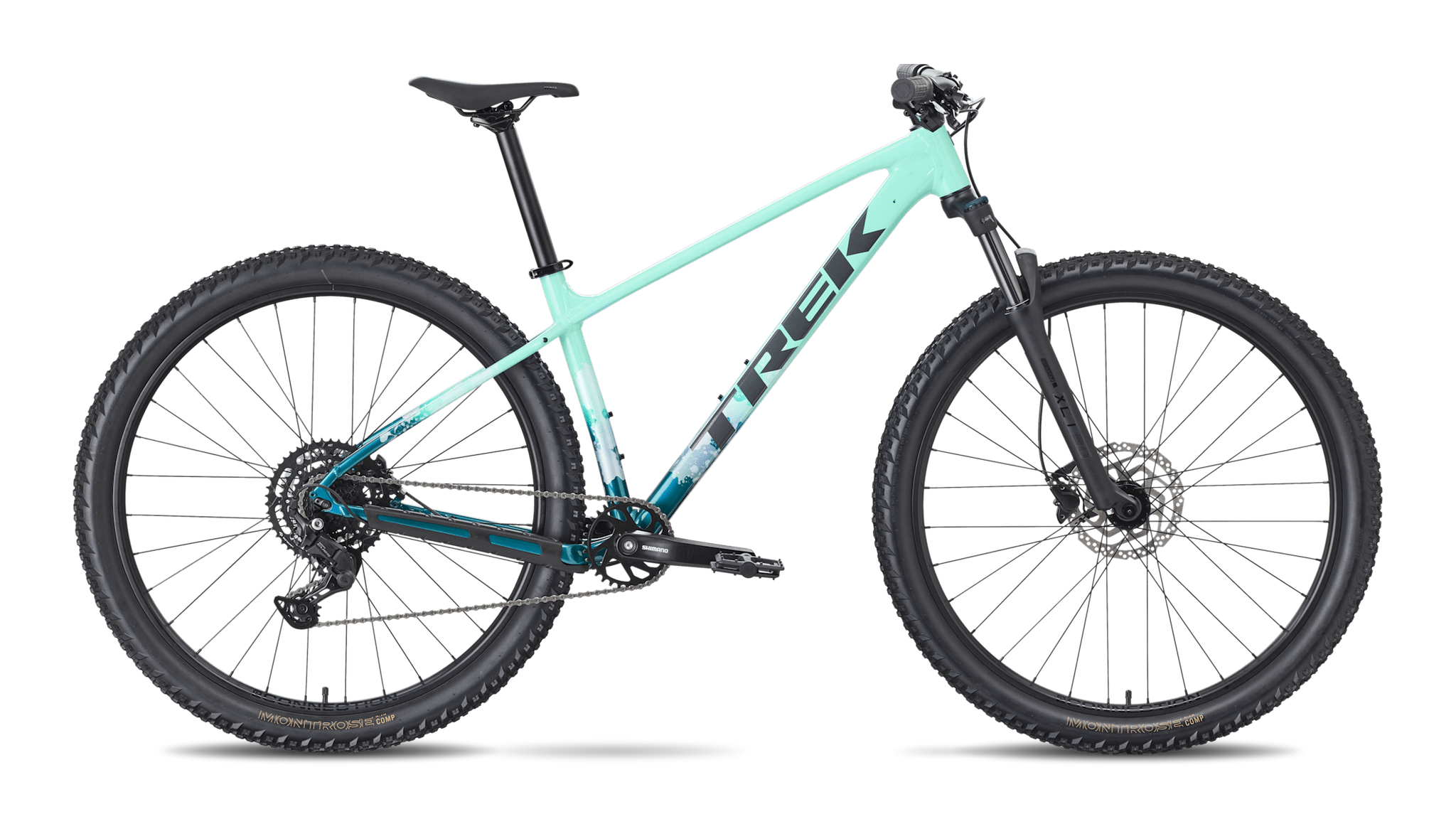

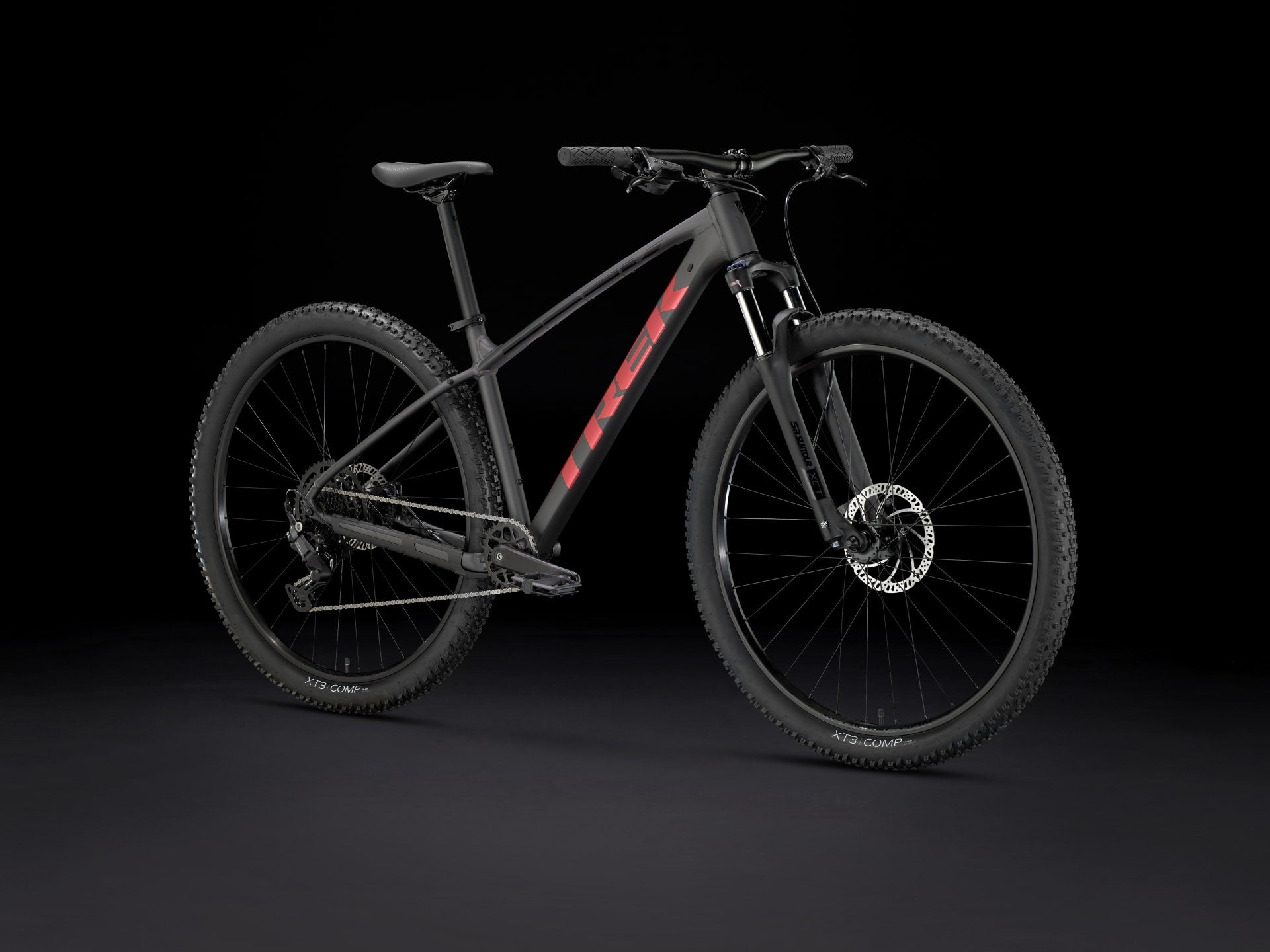

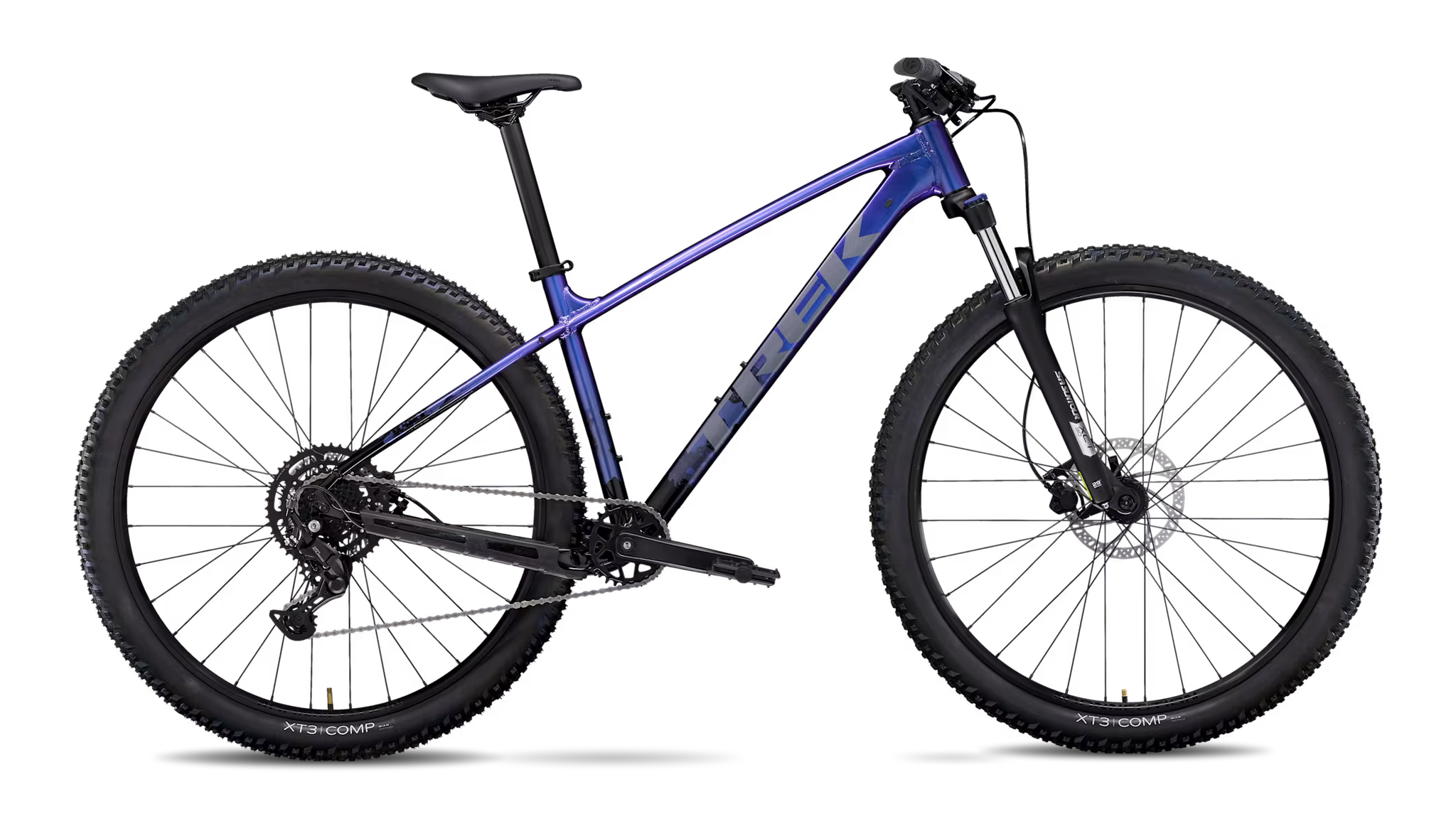

Trek | Marlin | 5 Gen 3
Price
- Regular price
- $929.99 CAD
- Sale price
- $929.99 CAD
- Regular price
-
Available
Only 1 left in stock!
Couldn't load pickup availability

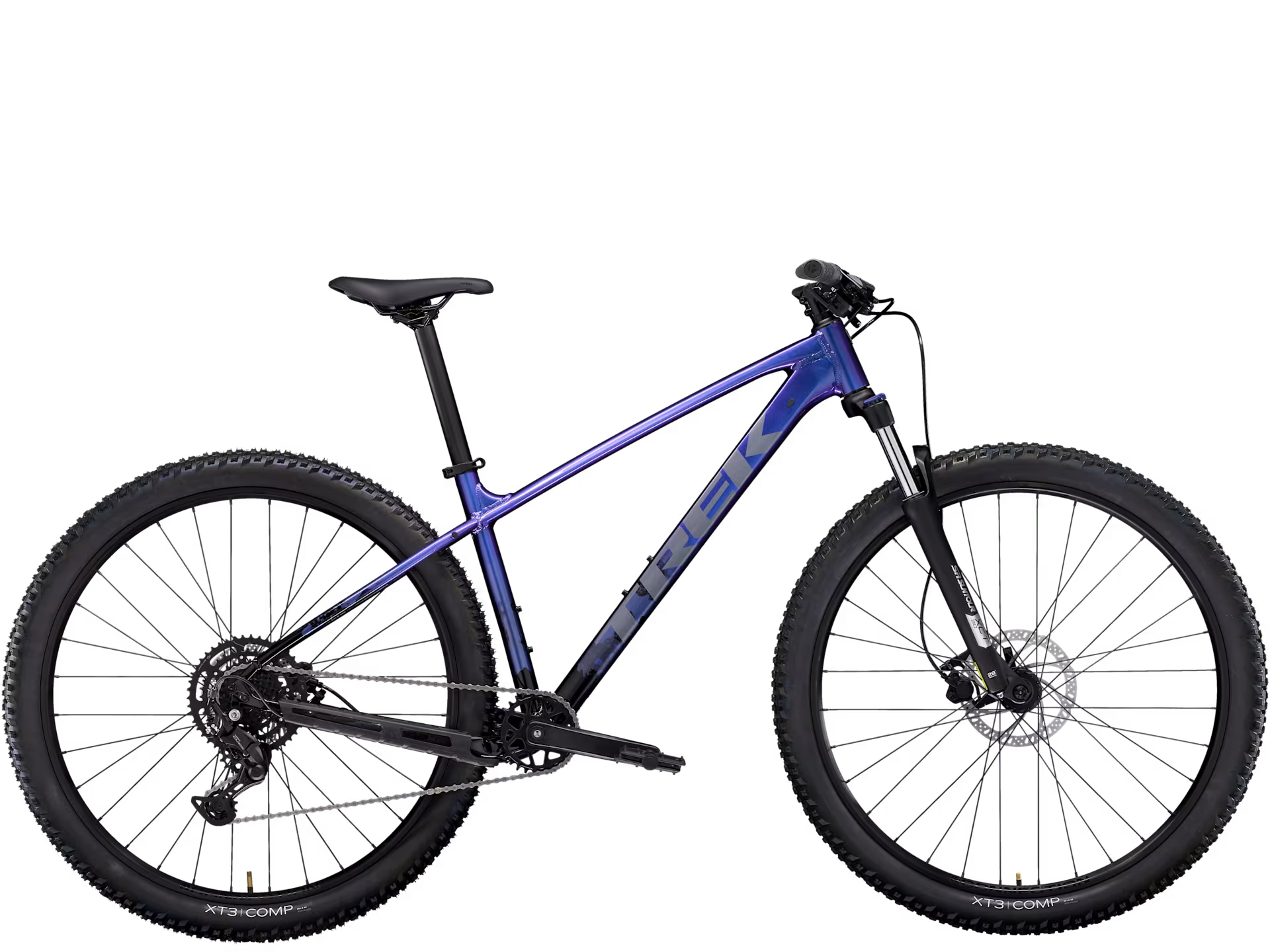

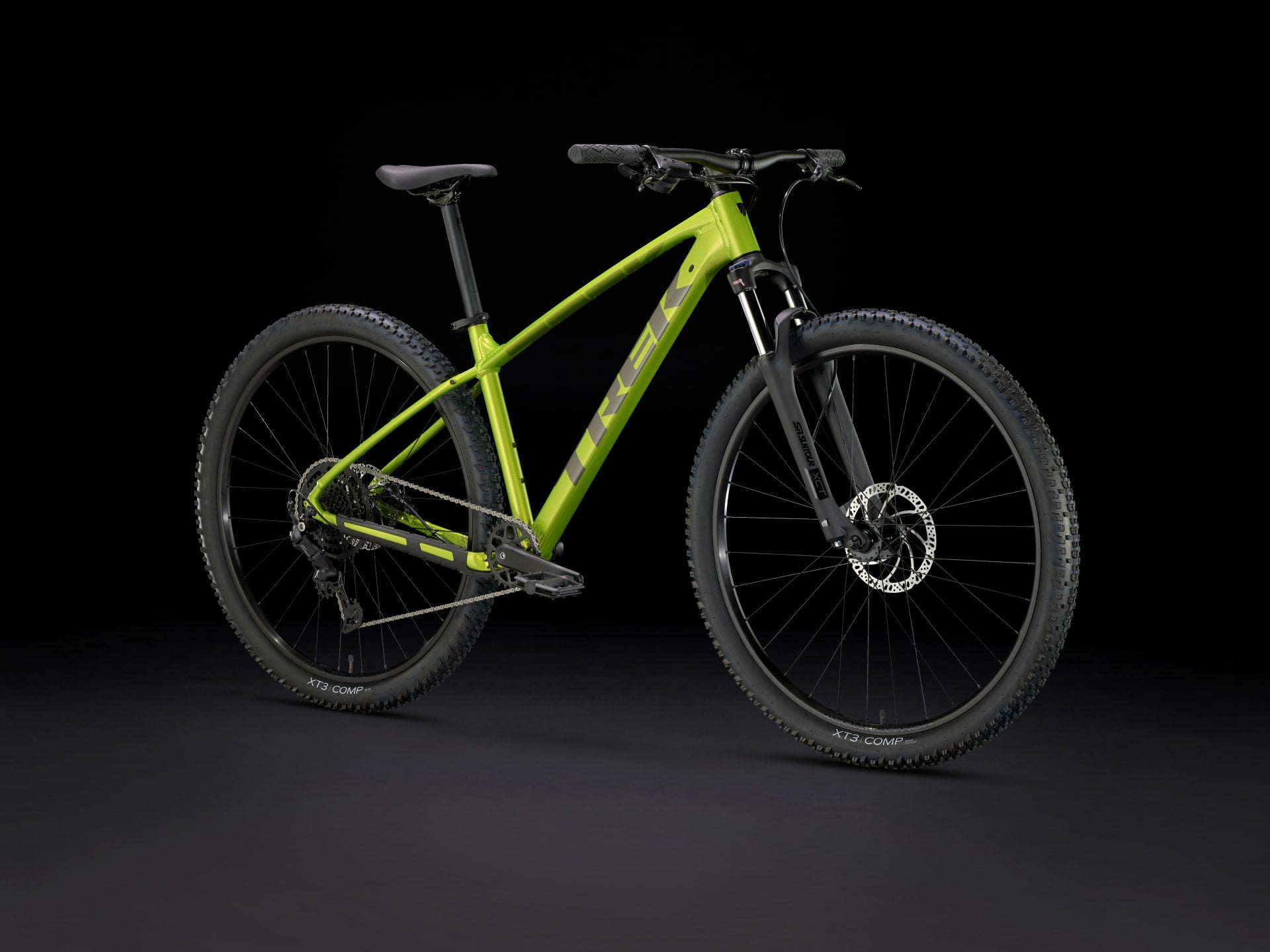

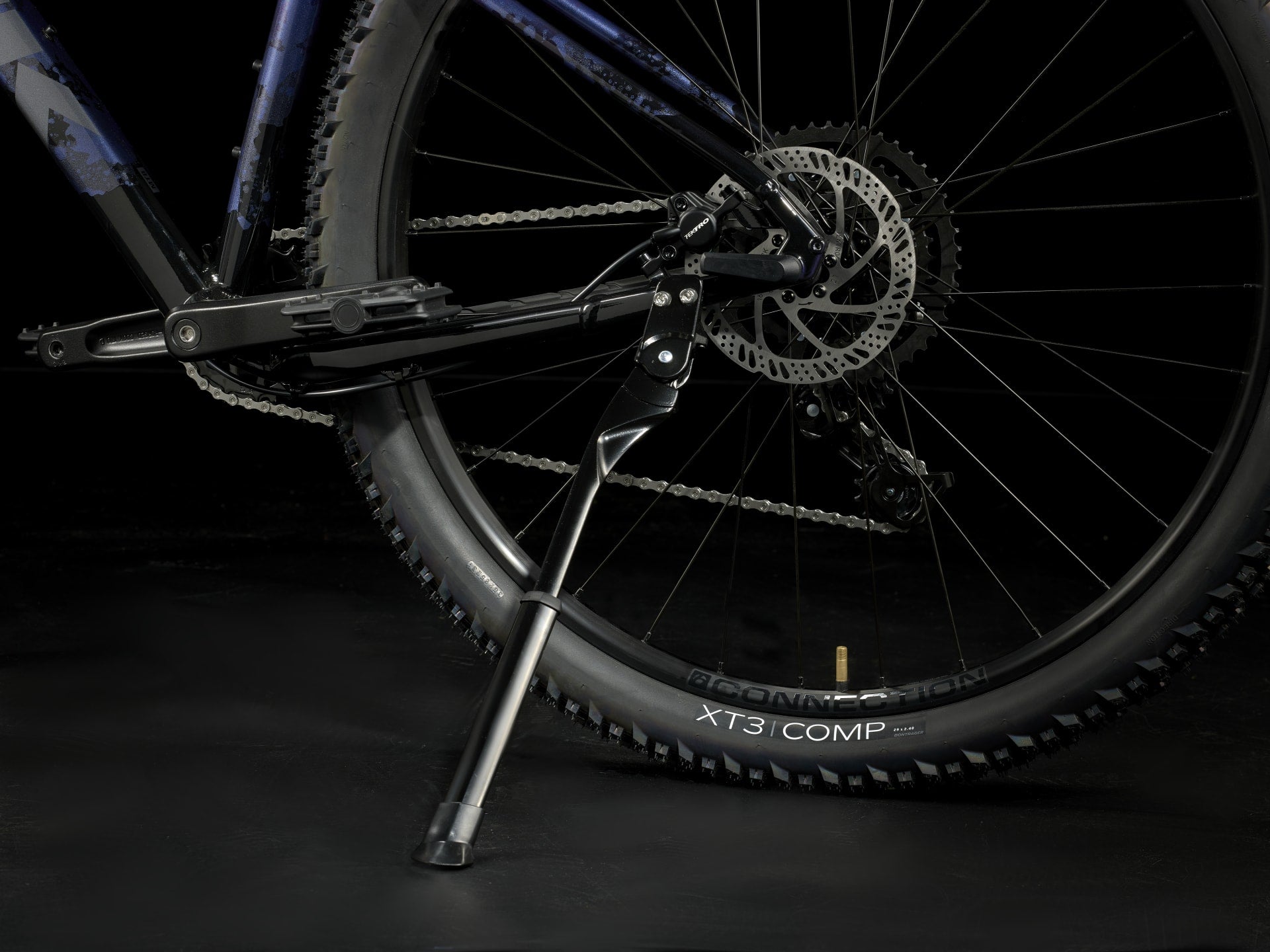

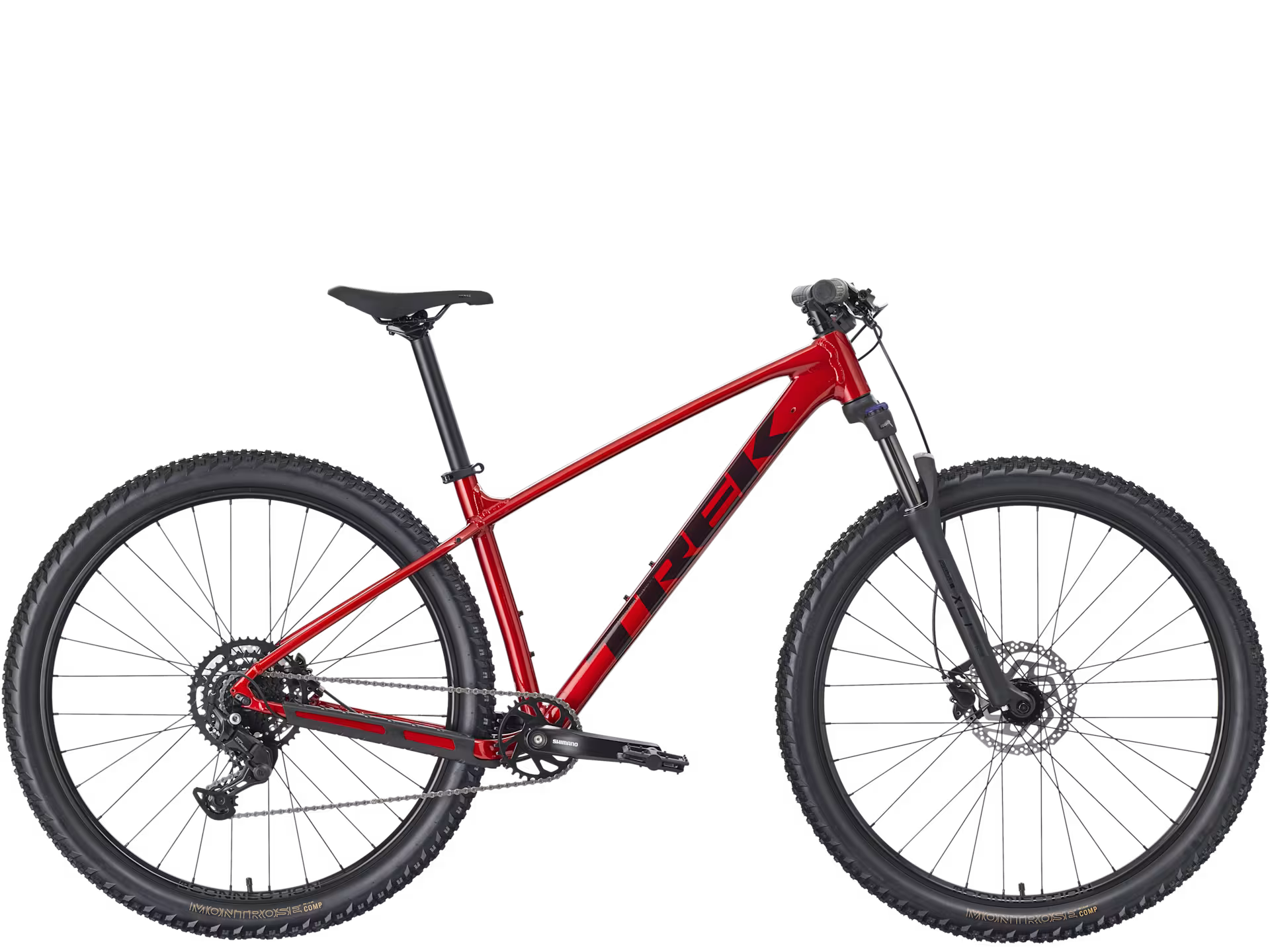

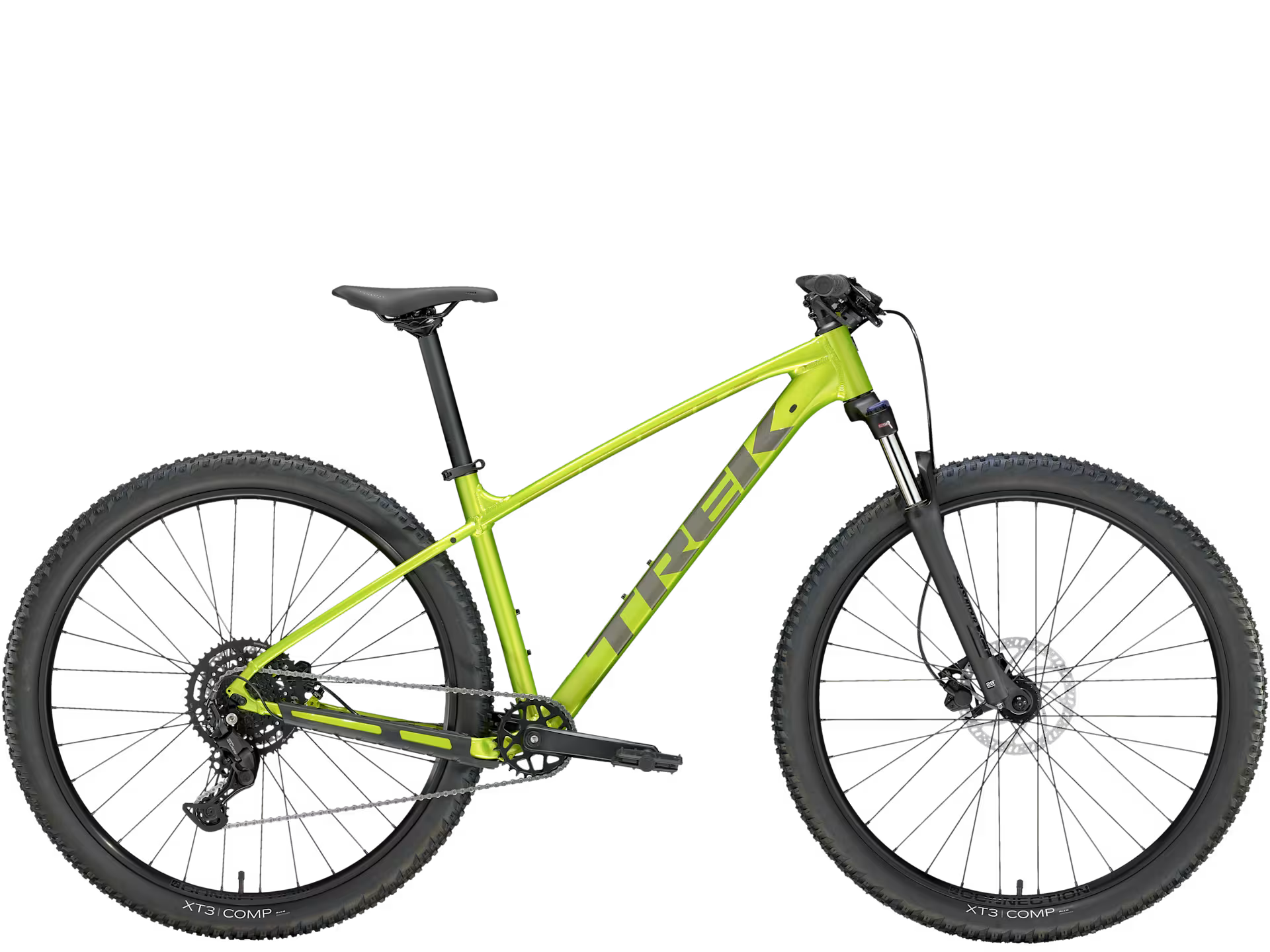

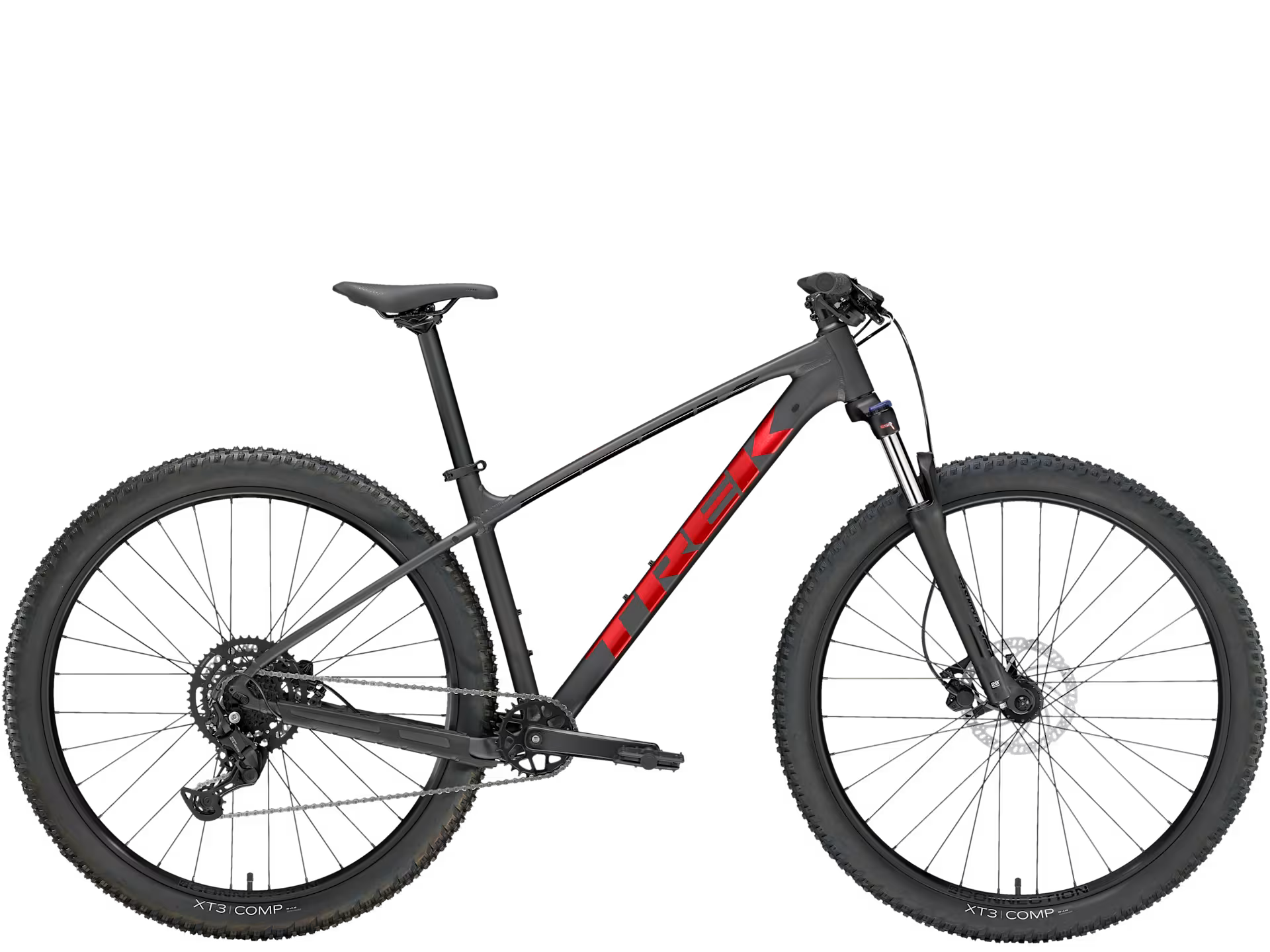

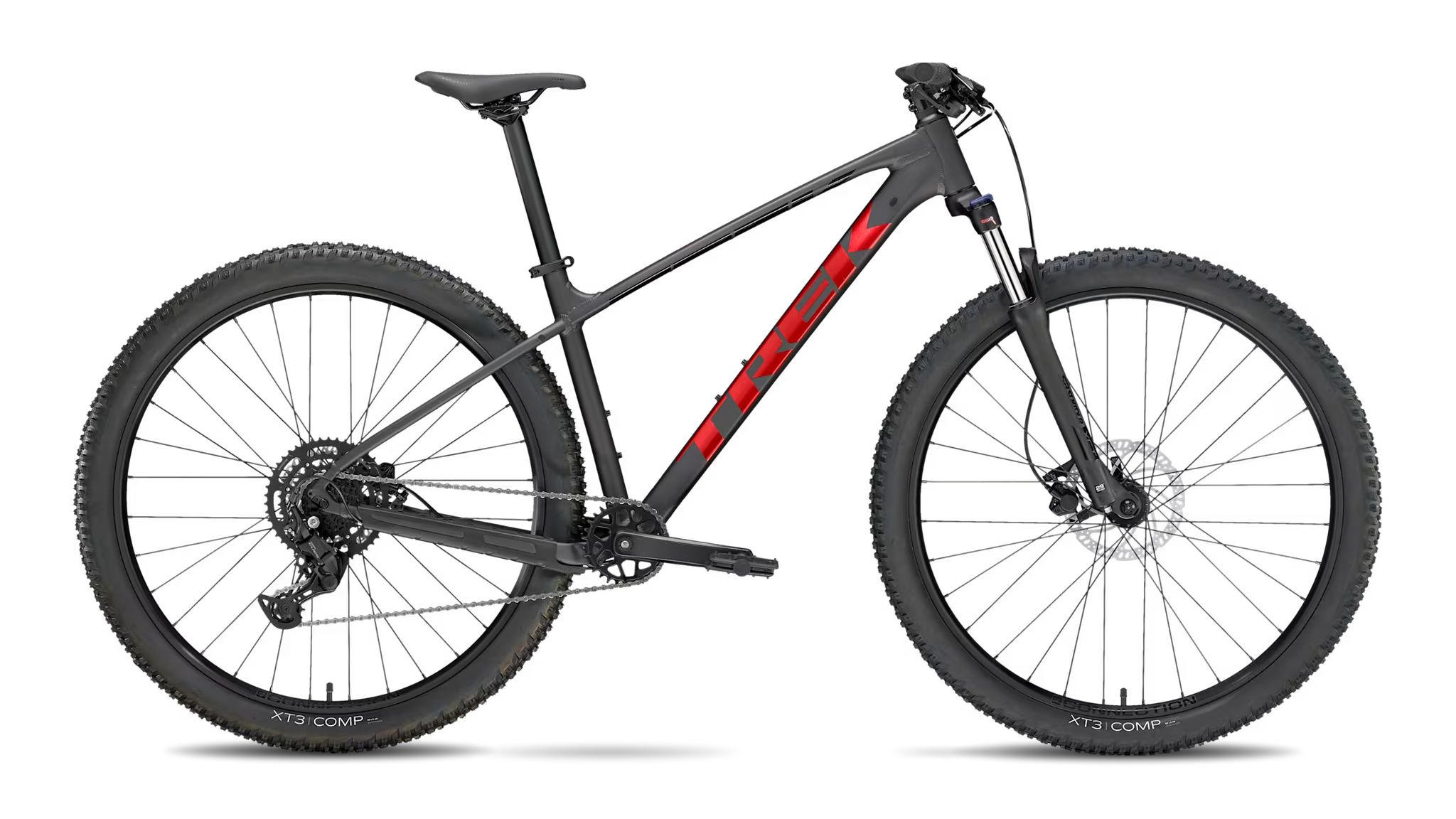

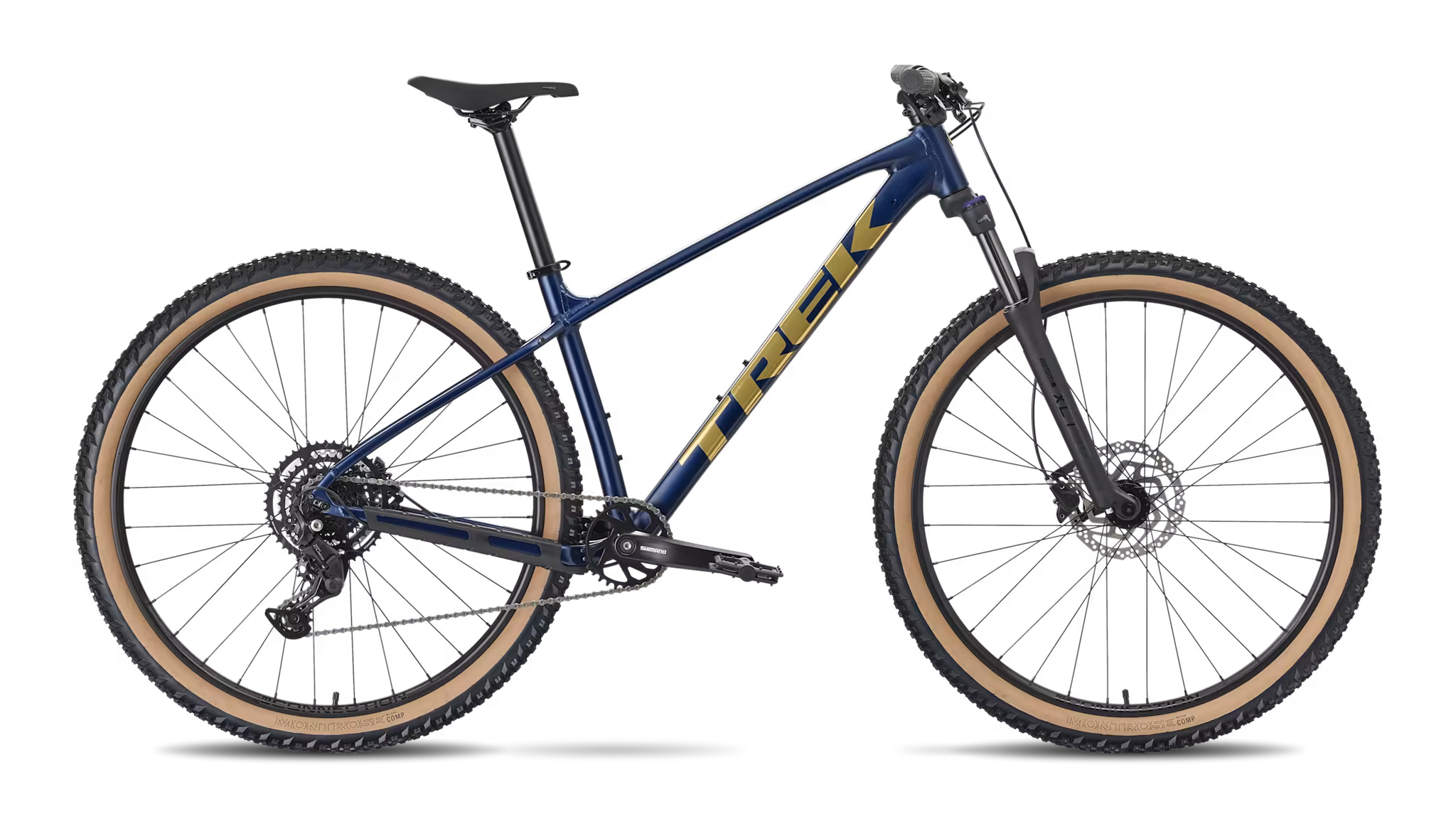

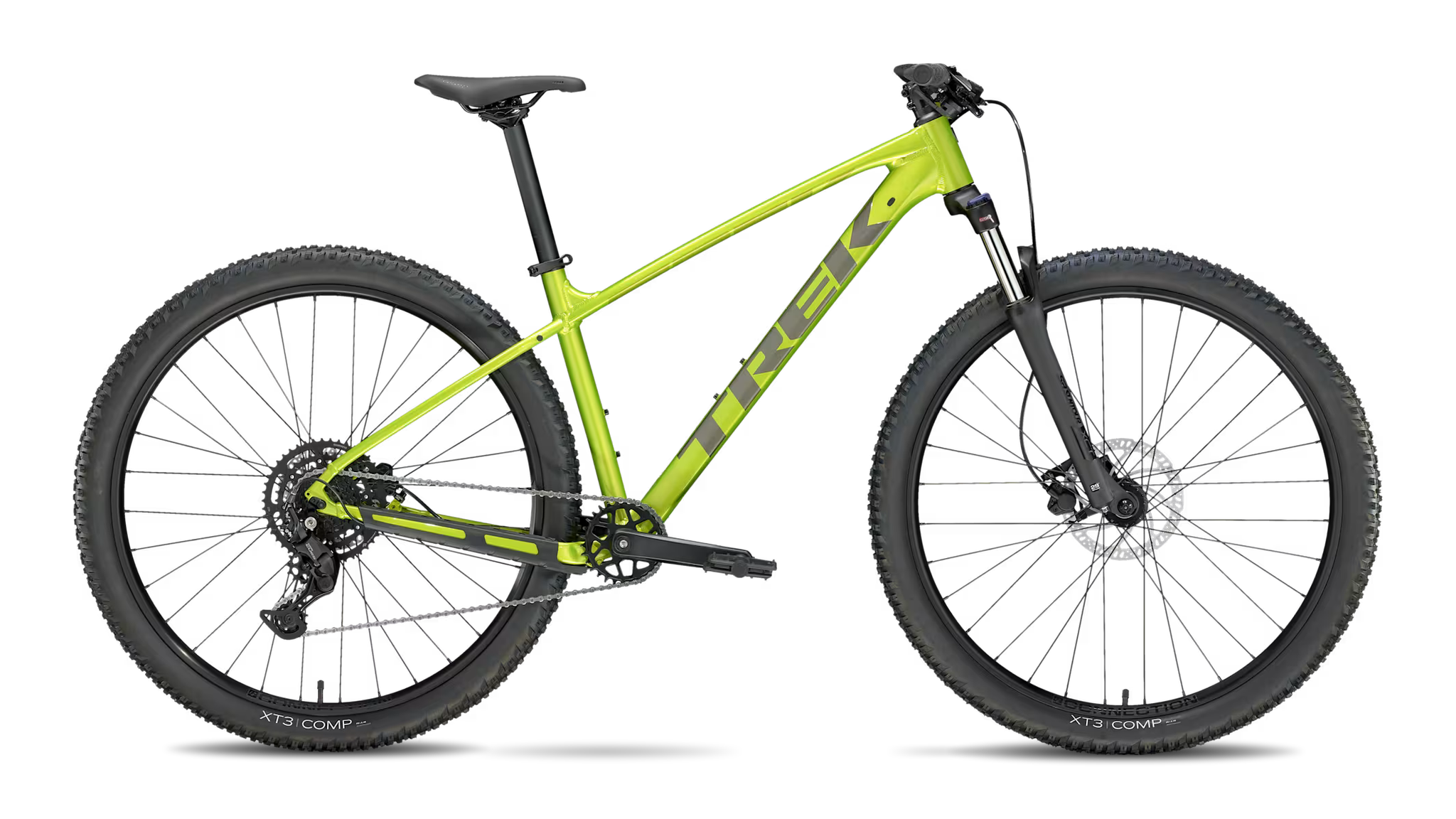

The Marlin 5 is a versatile everyday bike perfectly suited for trails and daily adventures, whether on trails or roads. It features a trail-ready frame with a suspension fork, a 9-speed Shimano CUES drivetrain, and mounts for a rack and kickstand, making it the ideal choice for trail enthusiasts or anyone looking for a comfortable and stable commuter bike with the added durability of a true mountain bike.
| *Frame |

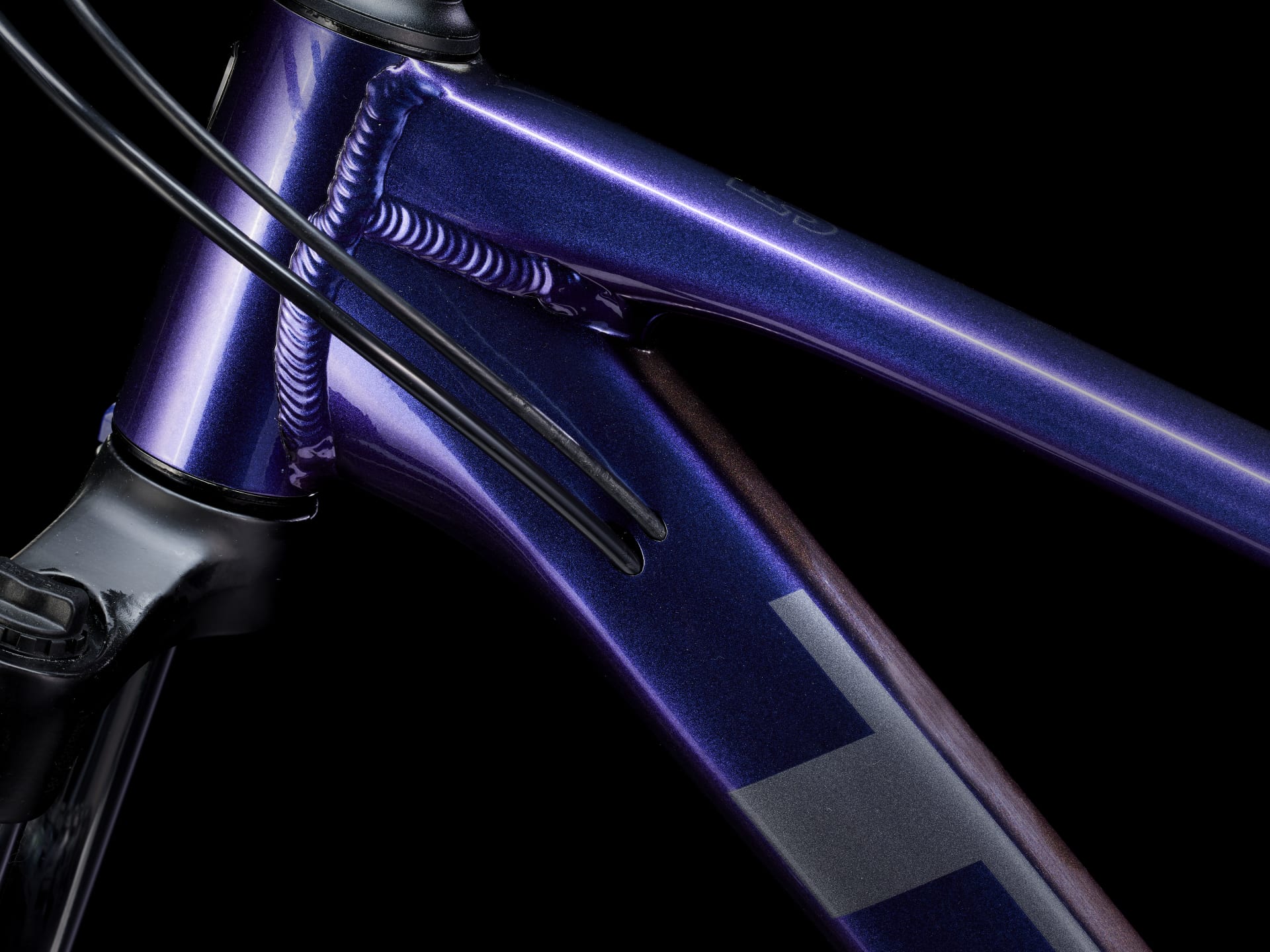

Size: XS Alpha Silver aluminum, curved top tube, internal cable routing for rear derailleur and dropper seatpost, rack and kickstand mounts, ThruSkew 135x5 mm |
|---|---|
|
Size: S, M, ML, L, XL Alpha Silver aluminum, internal cable routing for the rear derailleur and dropper seatpost, rack and kickstand mounts, ThruSkew 135x5 mm |
|
| *Fork |

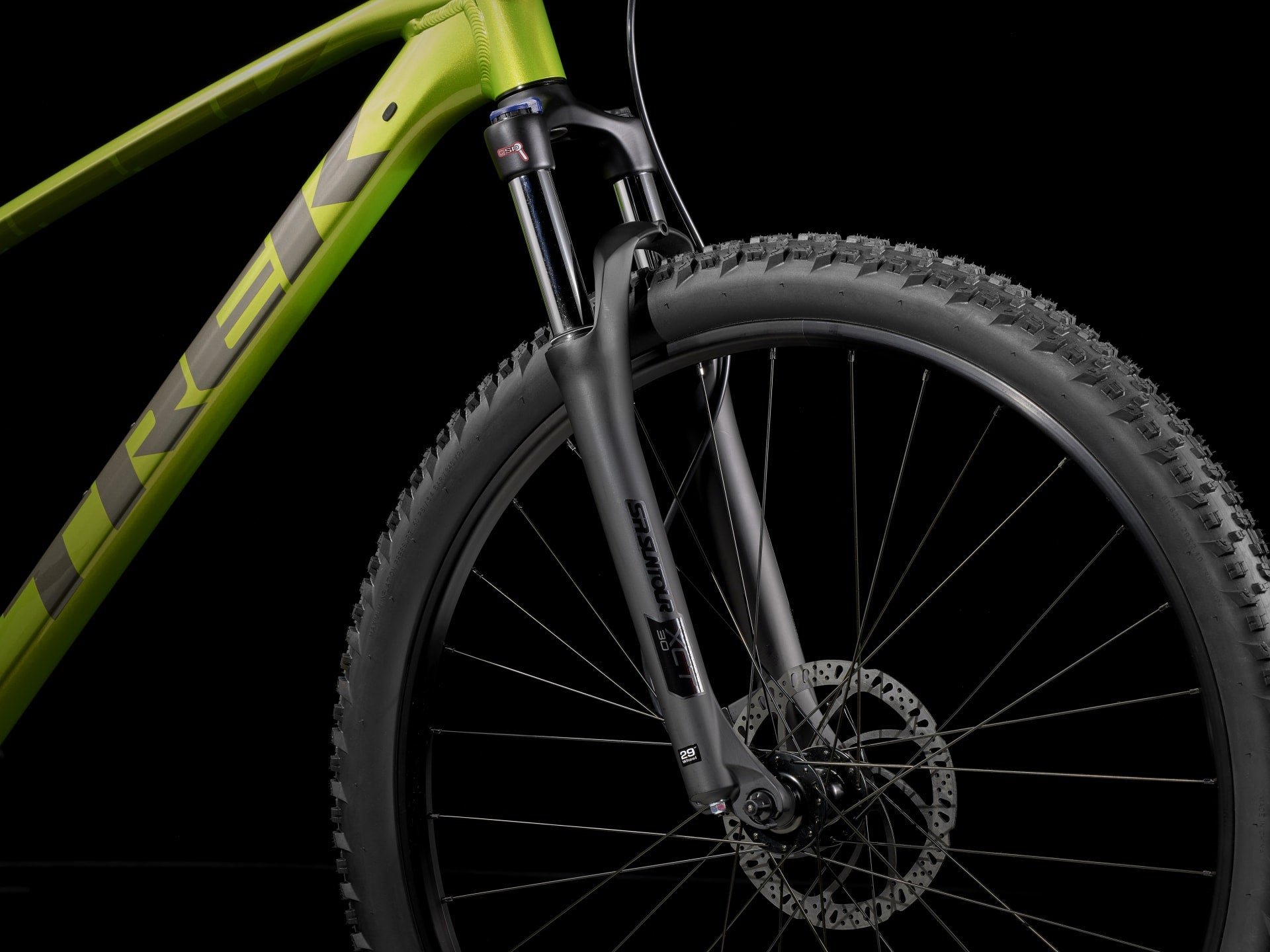

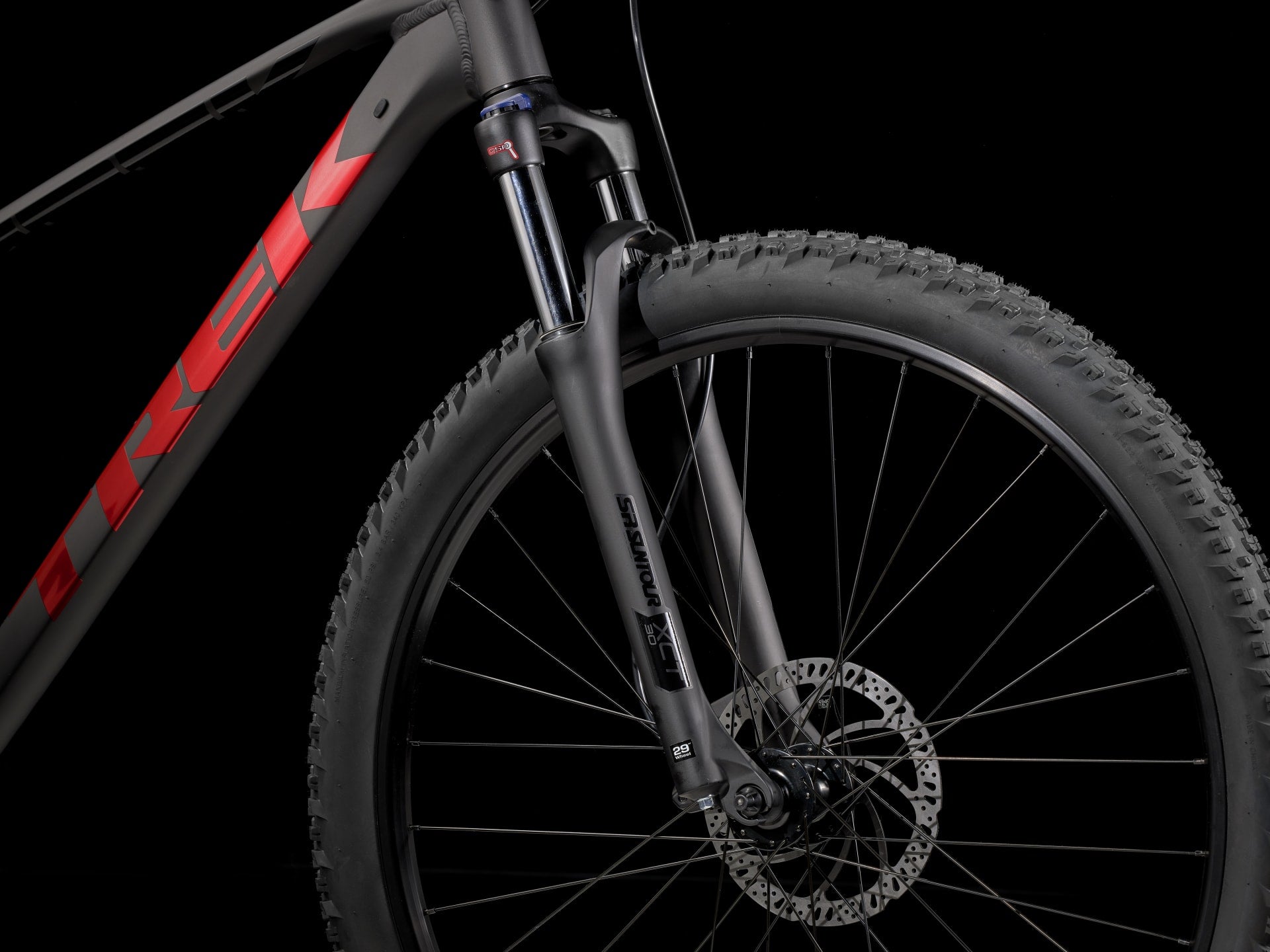

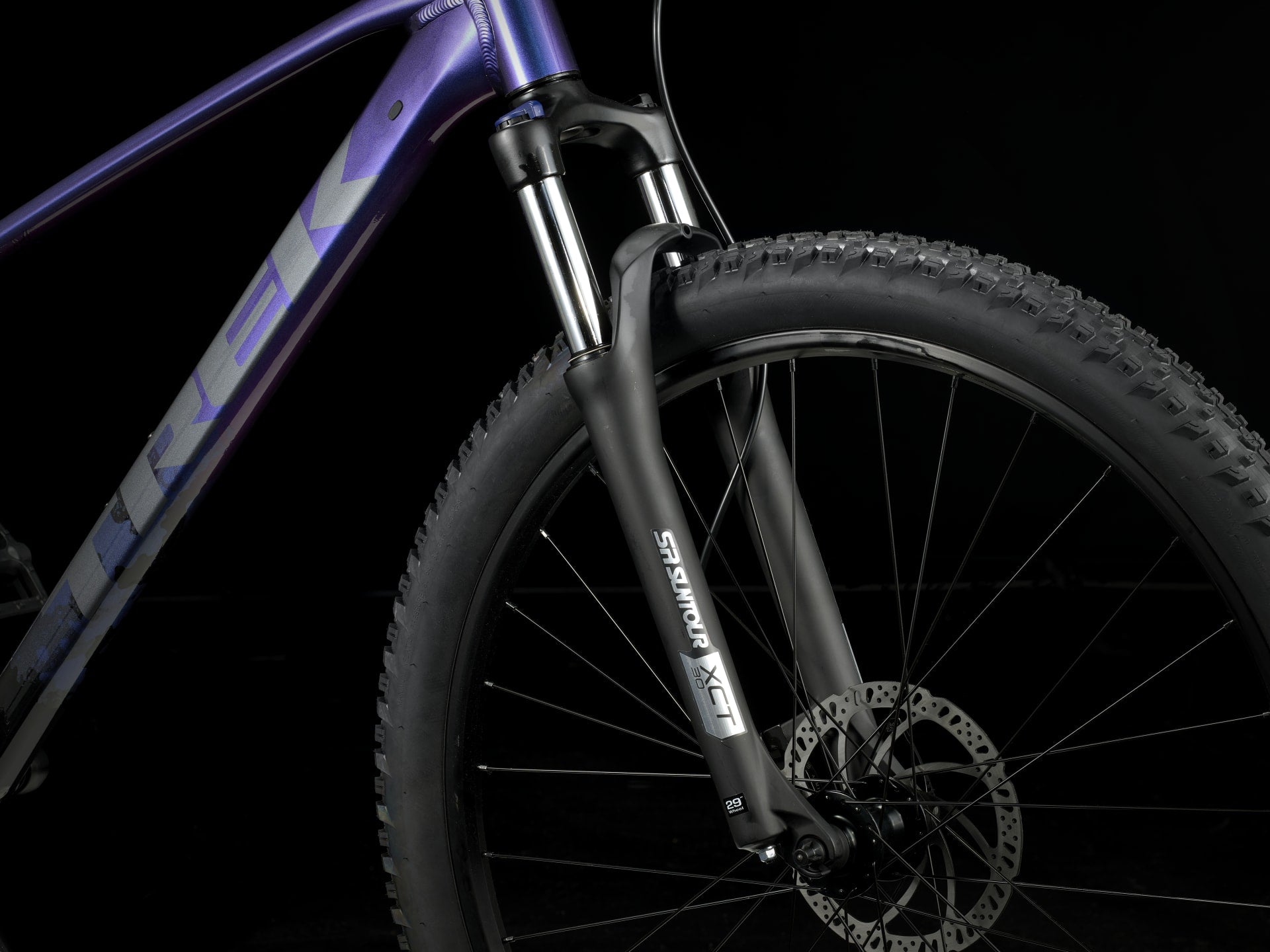

Size: XS SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5-inch wheels, 100 mm QR, 80 mm travel |
|
Size: S SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5-inch wheels, 100 mm QR, 100 mm travel |
|
|
Size: M, ML, L, XL SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29-inch wheels, 100 mm QR, 100 mm travel |
|
| Maximum compatible fork travel | 120mm, XXS: 80mm |
Wheels
| Front hub | Formula DC-20, alloy, 6 holes, QR 5x100 mm |
|---|---|
| Rear hub | Formula DC-22, alloy, 6-hole, Shimano 8/9/10 freehub body, QR 135x5 mm |
| Rear wheel lock | Quick release 173x5 mm |
| Rim | Bontrager Connection, double wall, 32 holes, 20 mm width, Schrader valve |
| Rays | 14g stainless steel, black |
| *Tire |

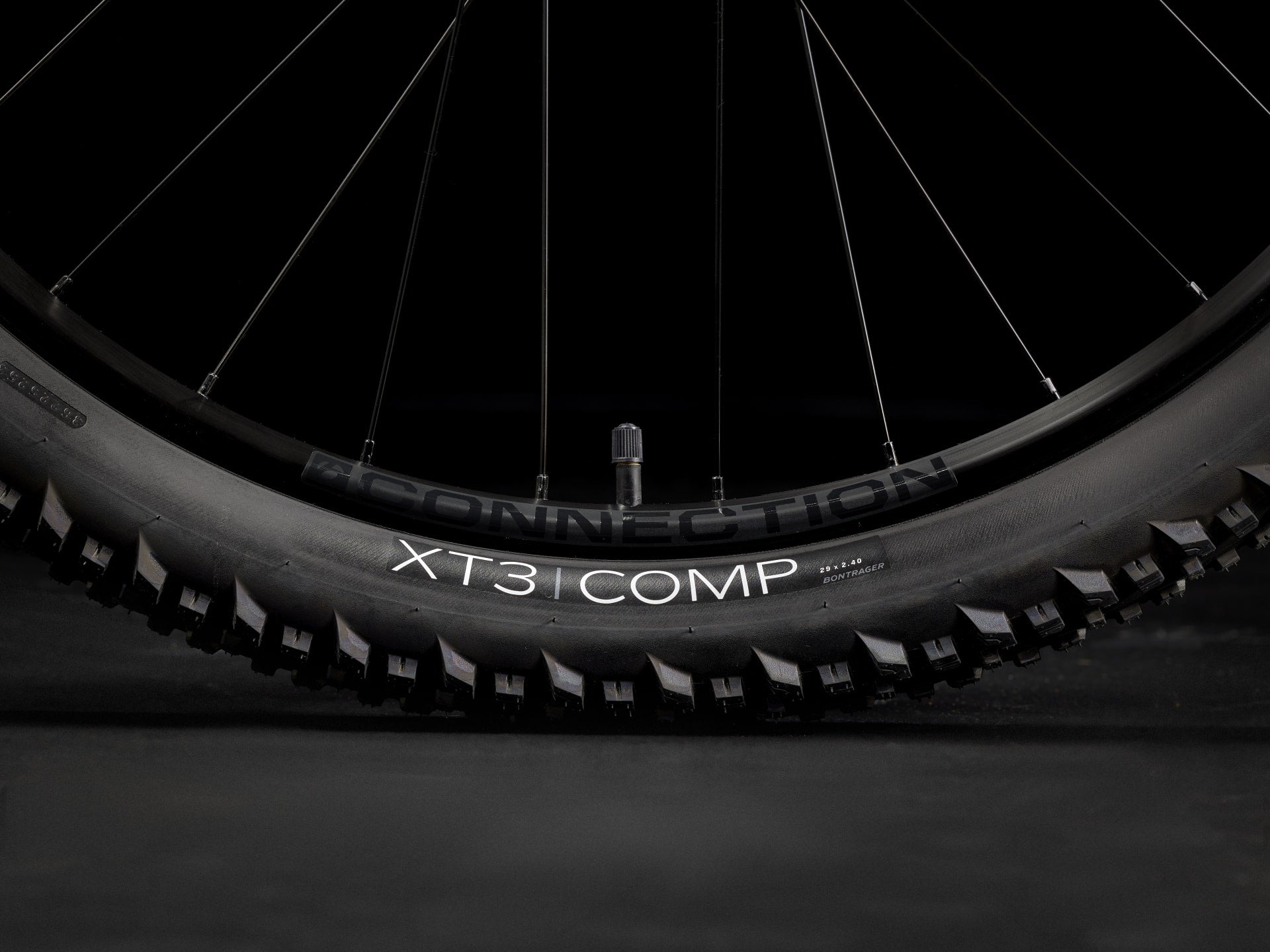

Size: XS, S Bontrager XT3 Comp, wire bead, 30 tpi, 27.5x2.40 inches |
|
Size: M, ML, L, XL Bontrager XT3 Comp, wire bead, 30 tpi, 29x2.40 inches |
|
| Maximum tire size | Frame: 29x2.40 inches (XXS: 26x2.40 inches, XS and S: 27.5x2.40 inches), Fork: See manufacturer |
Transmission
| Gear shift | Shimano U4000, 9 speeds |
|---|---|
| rear derailleur | Shimano CUES U4000 |
| *Crankset |

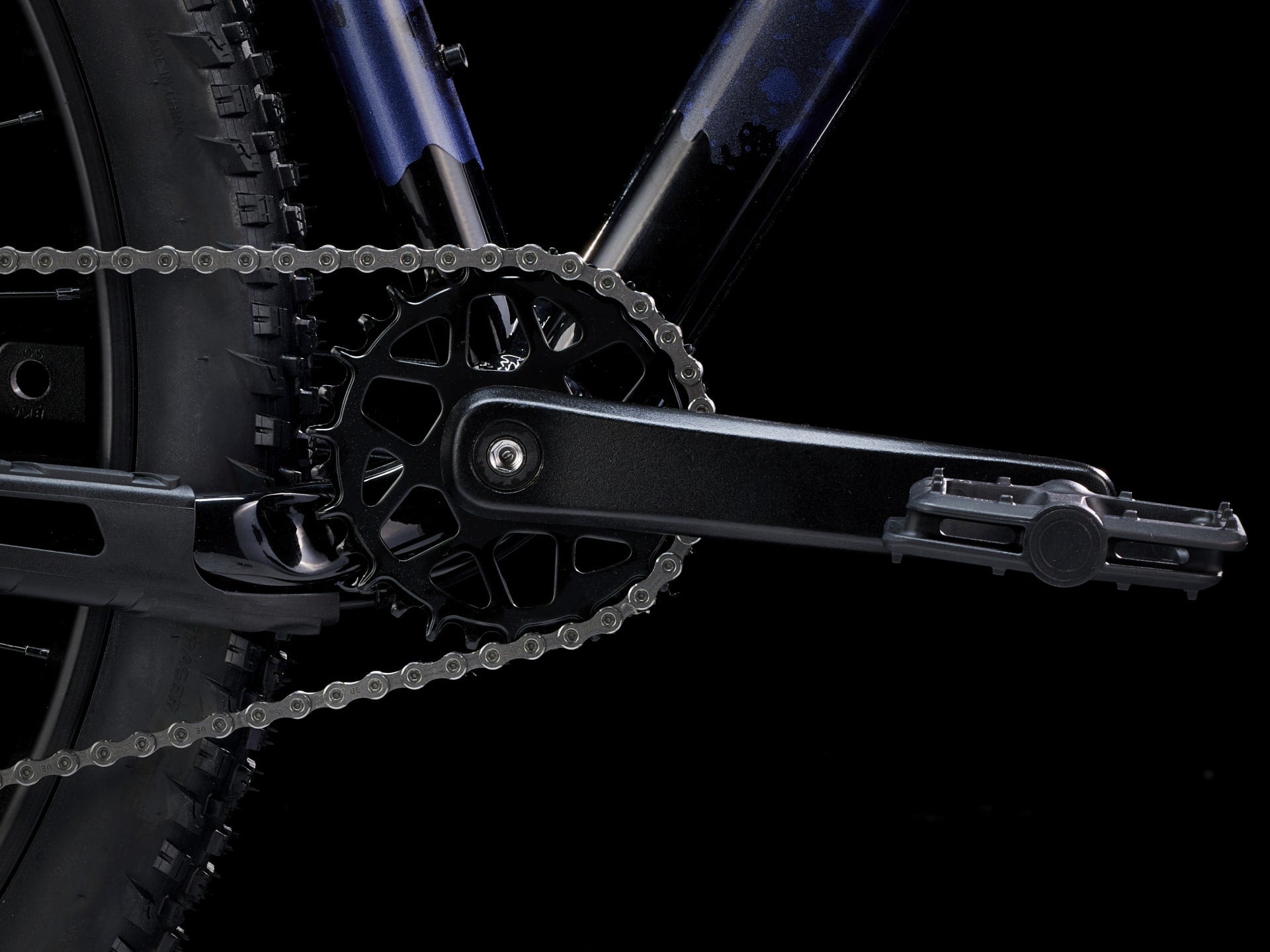

Size: XS Prowheel C10Y-NW, narrow-wide 30-tooth steel chainring, 160 mm length |
|
Size: S, M, ML Prowheel C10Y-NW, narrow-wide 30-tooth steel chainring, 170 mm length |
|
|
Size: L, XL Prowheel C10Y-NW, narrow-wide 30-tooth steel chainring, 175 mm length |
|
| Cassette | Shimano LINKGLIDE LG300, 11-46, 9 speed |
| Chain | Shimano LG500 |
| Pedal | VP-536, platform, nylon |
| Maximum tray size | 1x: 34 teeth, 2x: 36/22 |
Components
| *Seatpost |
Size: XS, S, M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
|---|---|
|
Size: ML, L, XL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| *Hanger |
Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
|
Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
|
|
Size: M, ML, L, XL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Handles | Bontrager XR Trail Comp, nylon lock-on |
| *Gallows |
Size: XS, S Bontrager Comp, 31.8 mm, 7 degrees, 35 mm length |
|
Size: M, ML, L Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 50 mm length |
|
|
Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 60 mm length |
|
| Steering game | Semi-integrated, 1.125 inch |

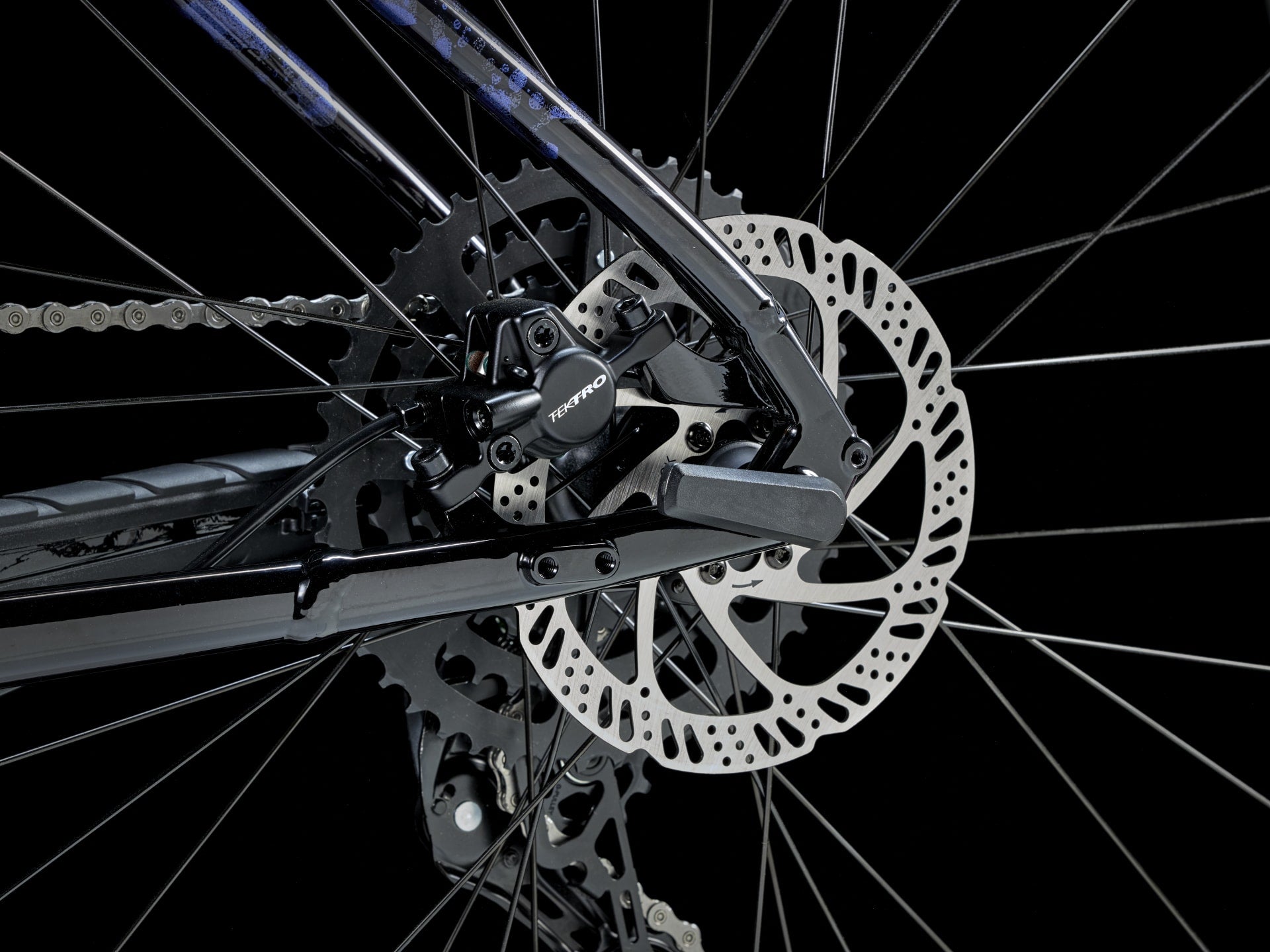

| Brake disc | Tektro, 6 holes, 160 mm |
| *Brake set |
Size: XS, S Tektro HD-M276, hydraulic, disc, short lever |
|
Size: XS, S Tektro HD-M276 hydraulic disc, short reach |
|
|
Size: M, ML, L, XL Tektro HD-M275, hydraulic, disc |
|
| Disc characteristics | Maximum brake disc size - Frame: 180mm (XXS: 160mm), Fork: see fork manufacturer |
Weight
| Weight | M - 15.10 kg / 33.29 lbs (with chambers) |
|---|---|
| Maximum weight | This bicycle has a maximum total weight limit (including the weight of the bicycle, rider and luggage) of 136 kg (300 pounds). |
