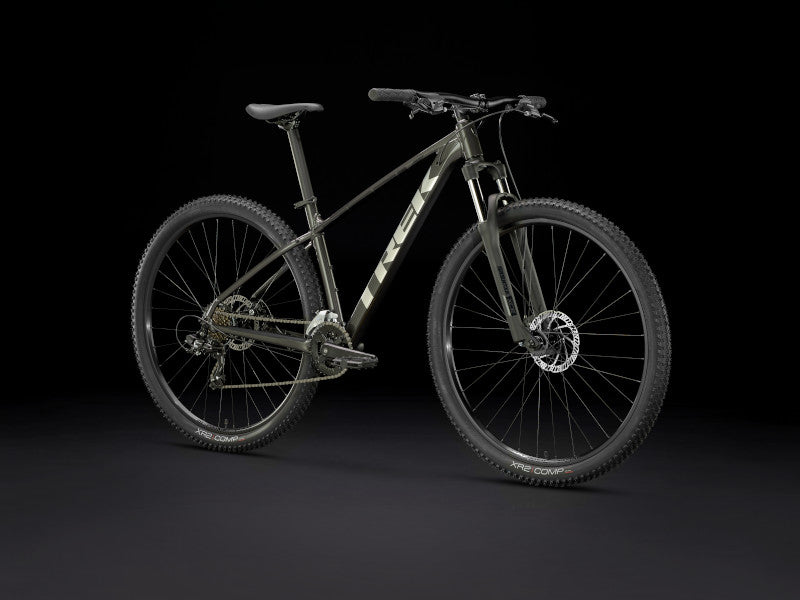

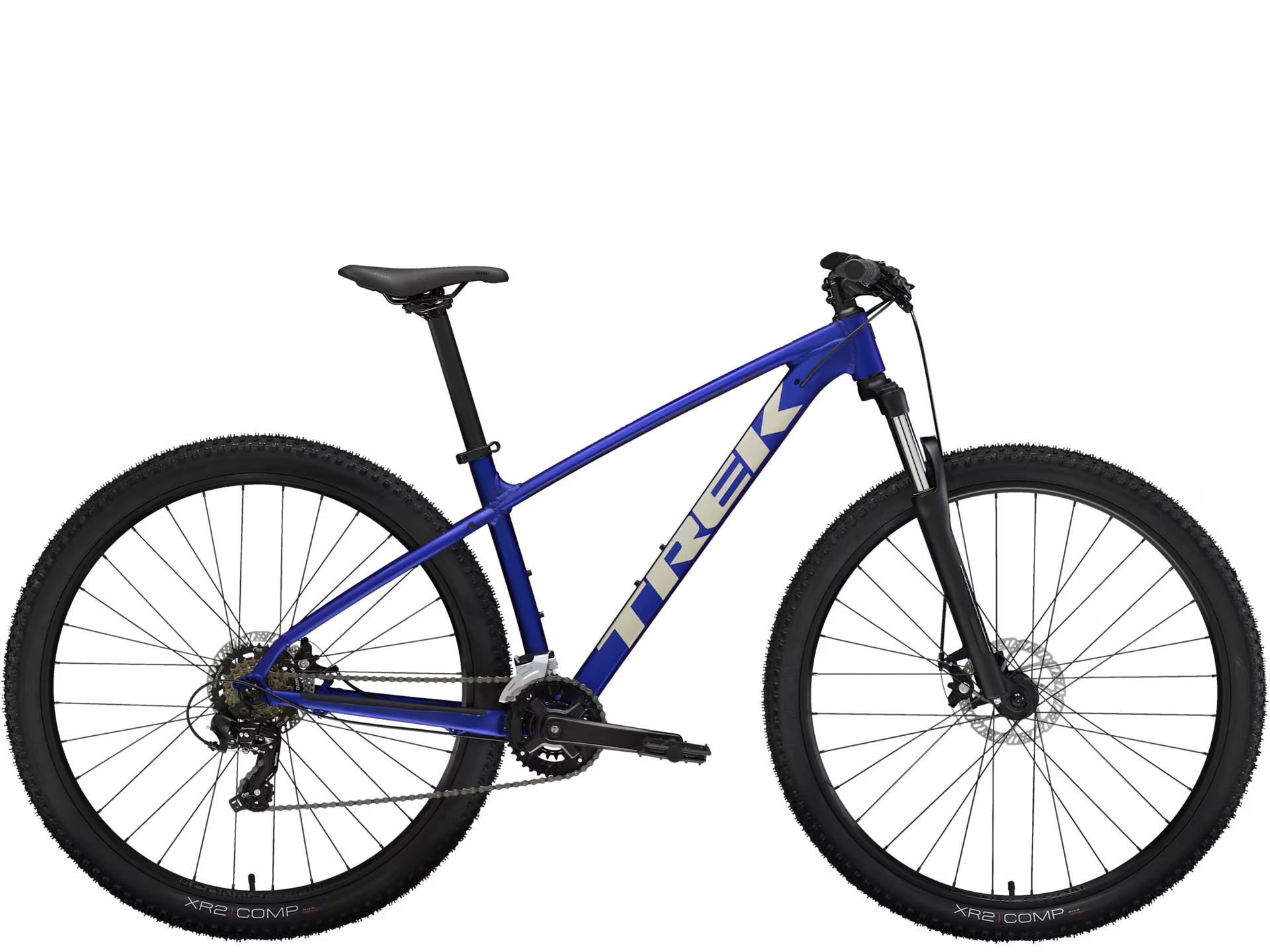

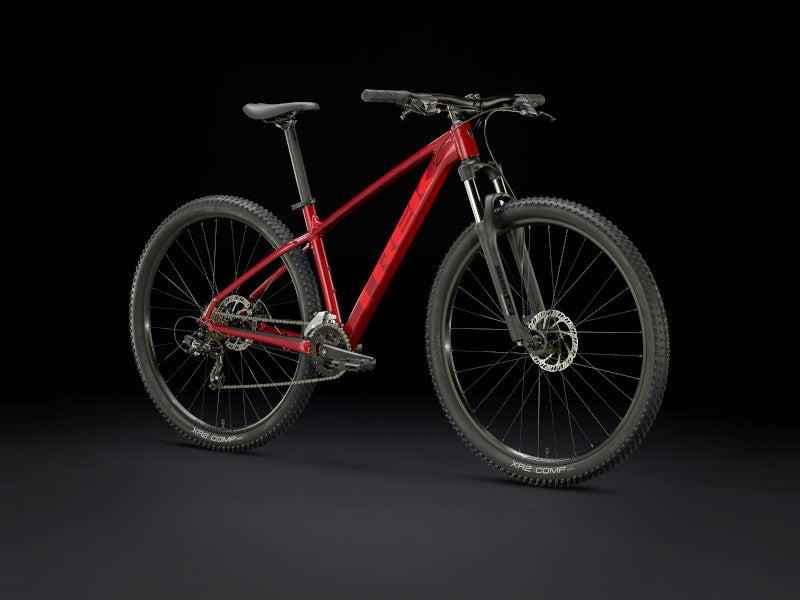

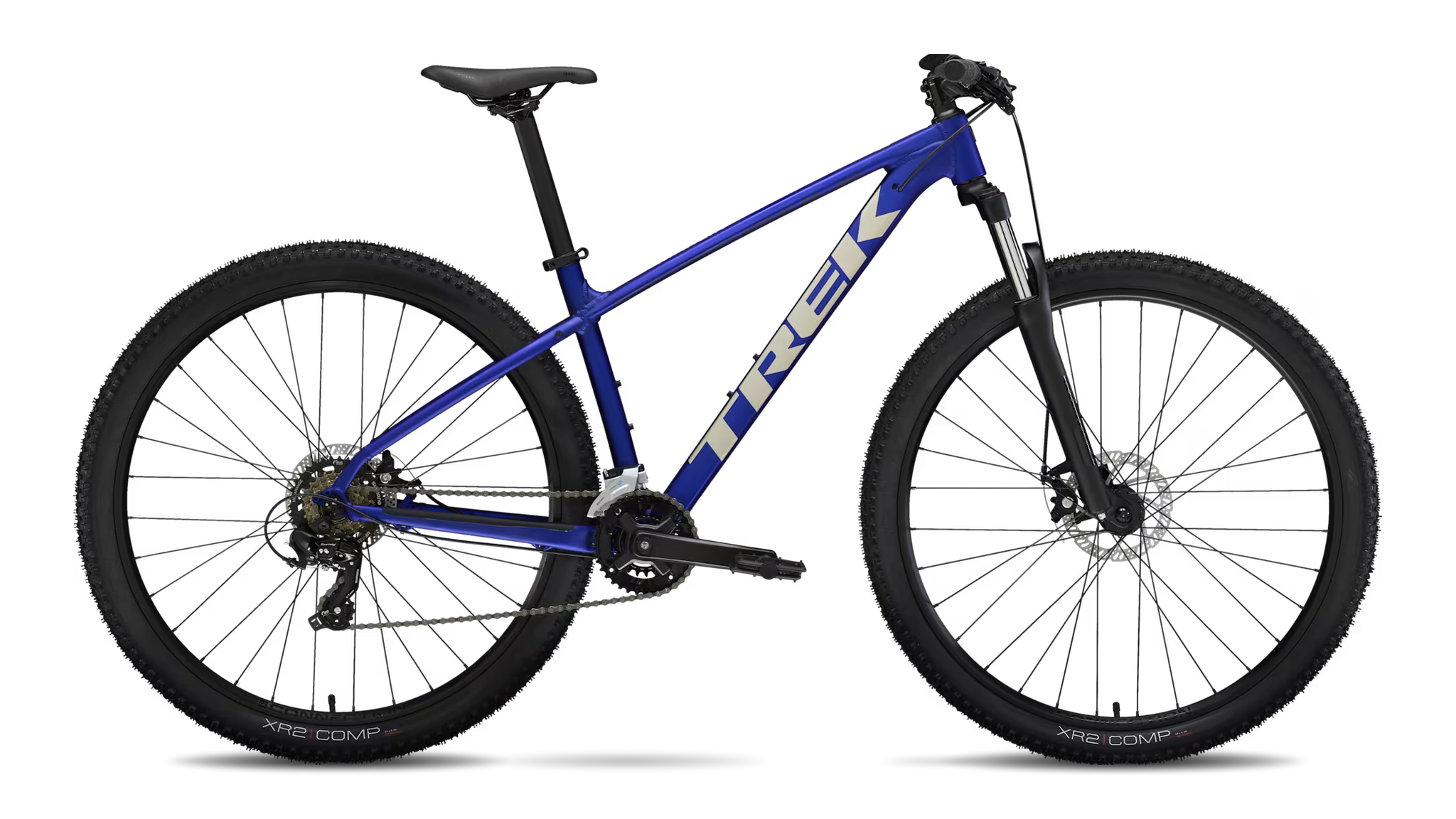

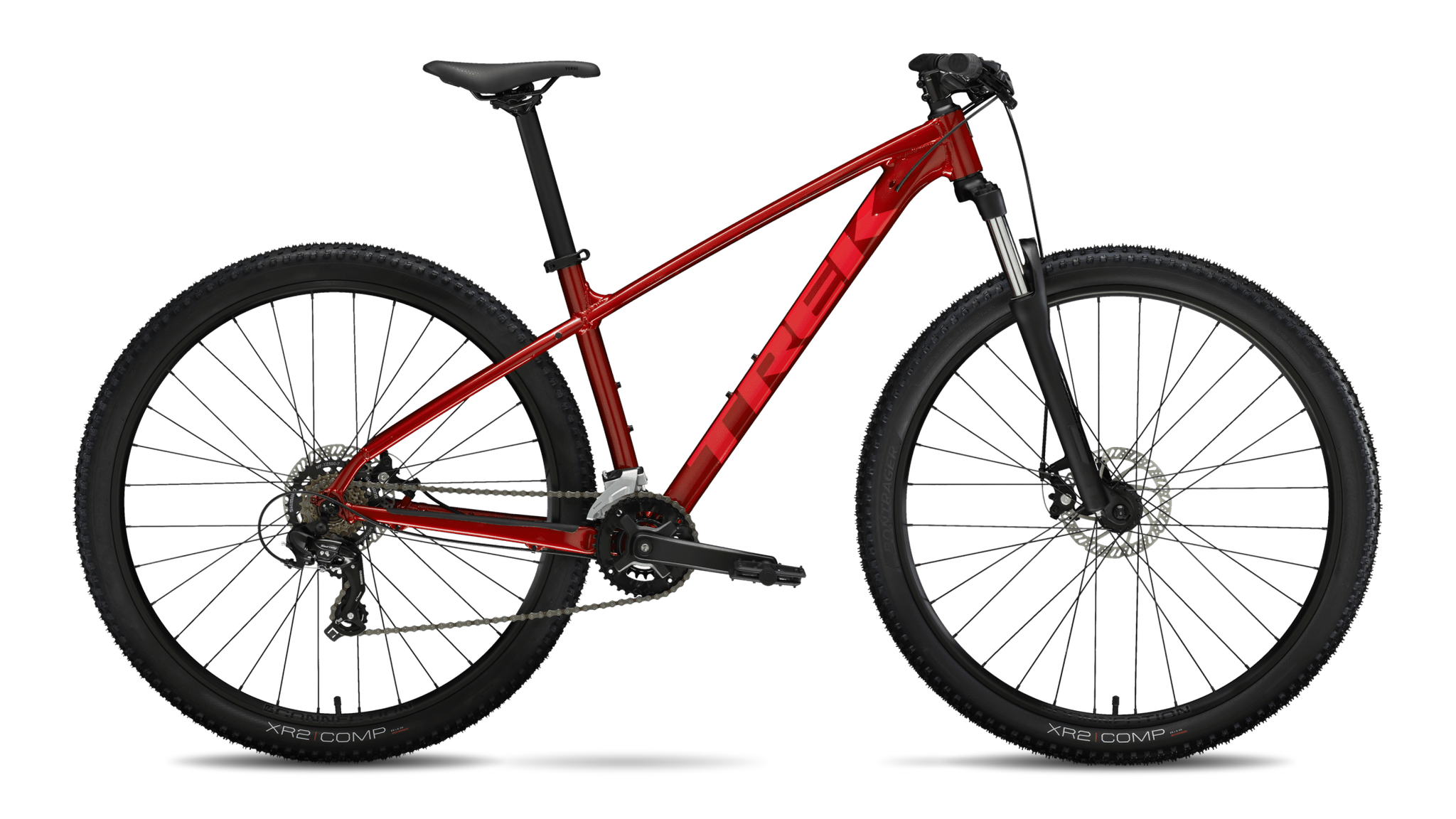

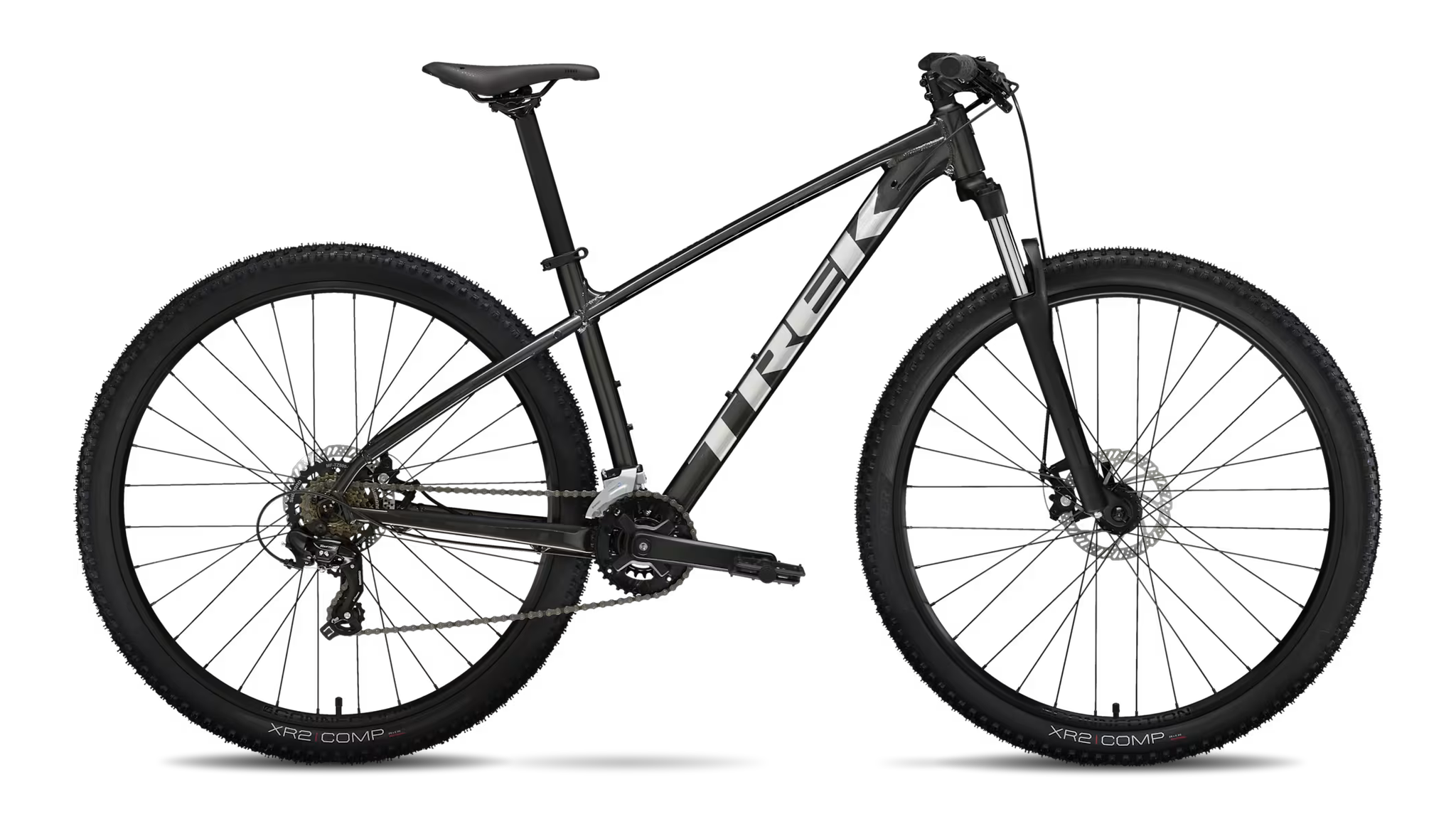

Trek | Marlin | 4 - 2nd gen. 24-25

Price
$699.99 CAD
$699.99 CAD
$749.99 CAD
Color
Size
Available Only 1 left in stock!

The Marlin 4 is perfect for discovering the trails. This bike is ideal for the beginner cyclist who wants a mountain bike with chunky tires that can also serve as a solid commuter. Disc brakes, a suspension fork, 21 speeds, and rack and fender mounts make this bike an excellent option for getting started on the trails or getting to cycling classes.

*Frame

Size: XS, S, M, ML, L, XL, XXL

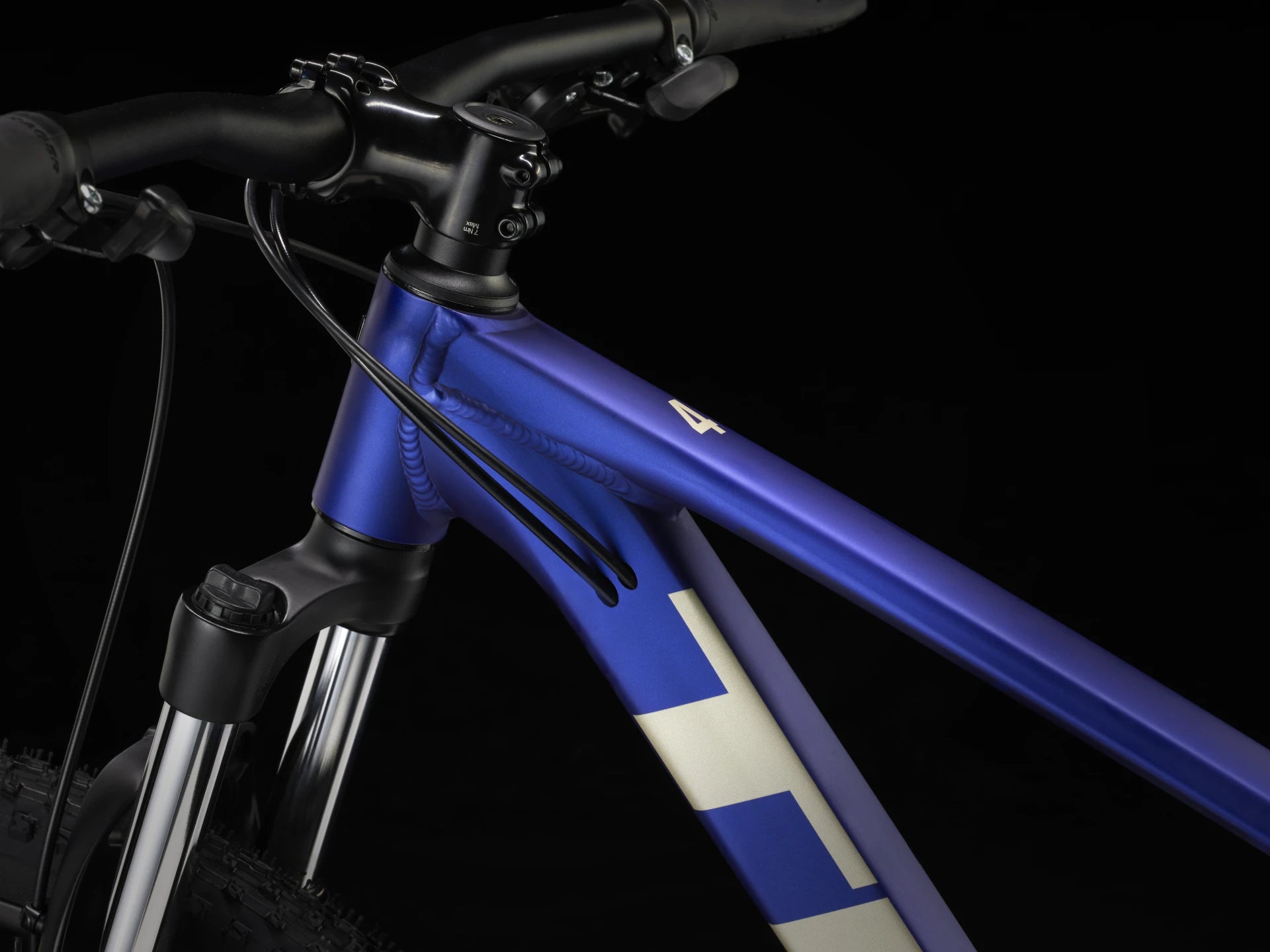

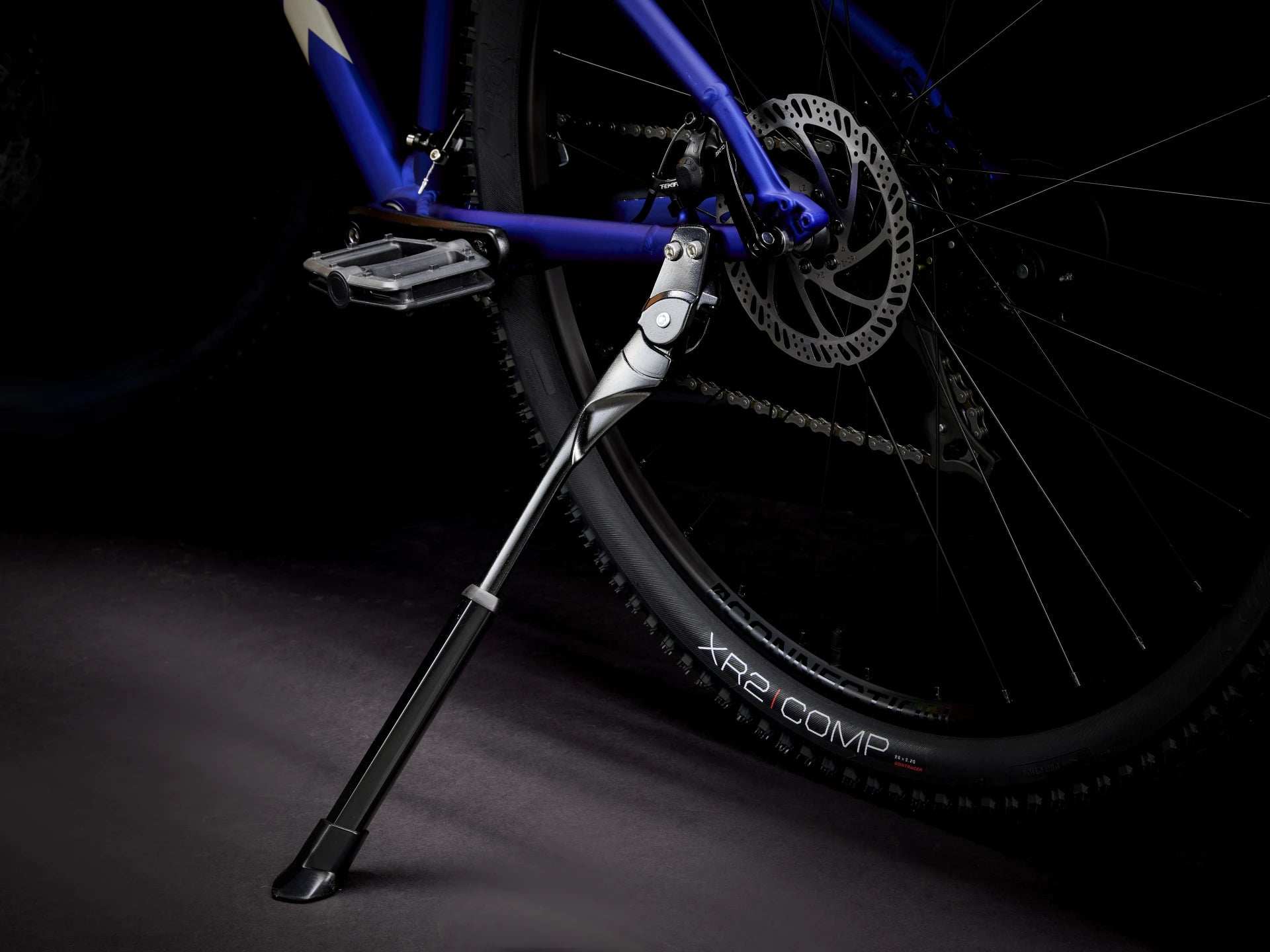

Alpha Silver aluminum, internal routing, rear disc brake mount, rack and kickstand mounts, QR 135x5 mm

Size: XS, S
Alpha Silver aluminum, low standover height, internal cable routing, rear chainstay disc brake mount, rack and kickstand mounts, QR 135x5 mm

*Fork

Size: XS
SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5-inch wheels, 100mm QR, 80mm travel

Size: S
SR Suntour XCE 28, coil spring, preload, 42mm offset for 27.5-inch wheels, 100mm QR, 100mm travel

Sizes: M, ML, L, XL, XXL
SR Suntour XCE 28, coil spring, preload, 46mm offset for 29-inch wheels, 100mm QR, 100mm travel

Maximum compatible fork travel

100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)

Wheels

Front hub

Formula DC-20, alloy, 6 holes, QR 5x100 mm

Rear hub

Formula DC-31, alloy, 6-hole, 6/7/8-speed freehub body, QR 135x5 mm

*Rim

Size: XS, S, M, ML, L, XL, XXL
Bontrager Connection, double wall, 32 holes, 20 mm width, Schrader valve

Size: XS, S, M, ML, L, XL, XXL
Bontrager Connection, double wall, 32 holes, 20 mm width, Schrader valve

*Tire

Size: XS, S
Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.2 inches

Sizes: M, ML, L, XL, XXL
Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.2 inches

Sizes: M, ML, L, XL, XXL
Bontrager XR2 Comp, wire bead, 30 tpi, 29x2 inches

Maximum tire size

Frame: 29x2.2 inches (XS and S: 27.5x2.4 inches) Fork: See manufacturer

Transmission

Gear shift

Shimano Altus EF500, 7 speed

front derailleur

Shimano Tourney TY300, 34.9mm collar, down swing, down pull

rear derailleur

Shimano Tourney TY300, long cage, 34T max sprocket

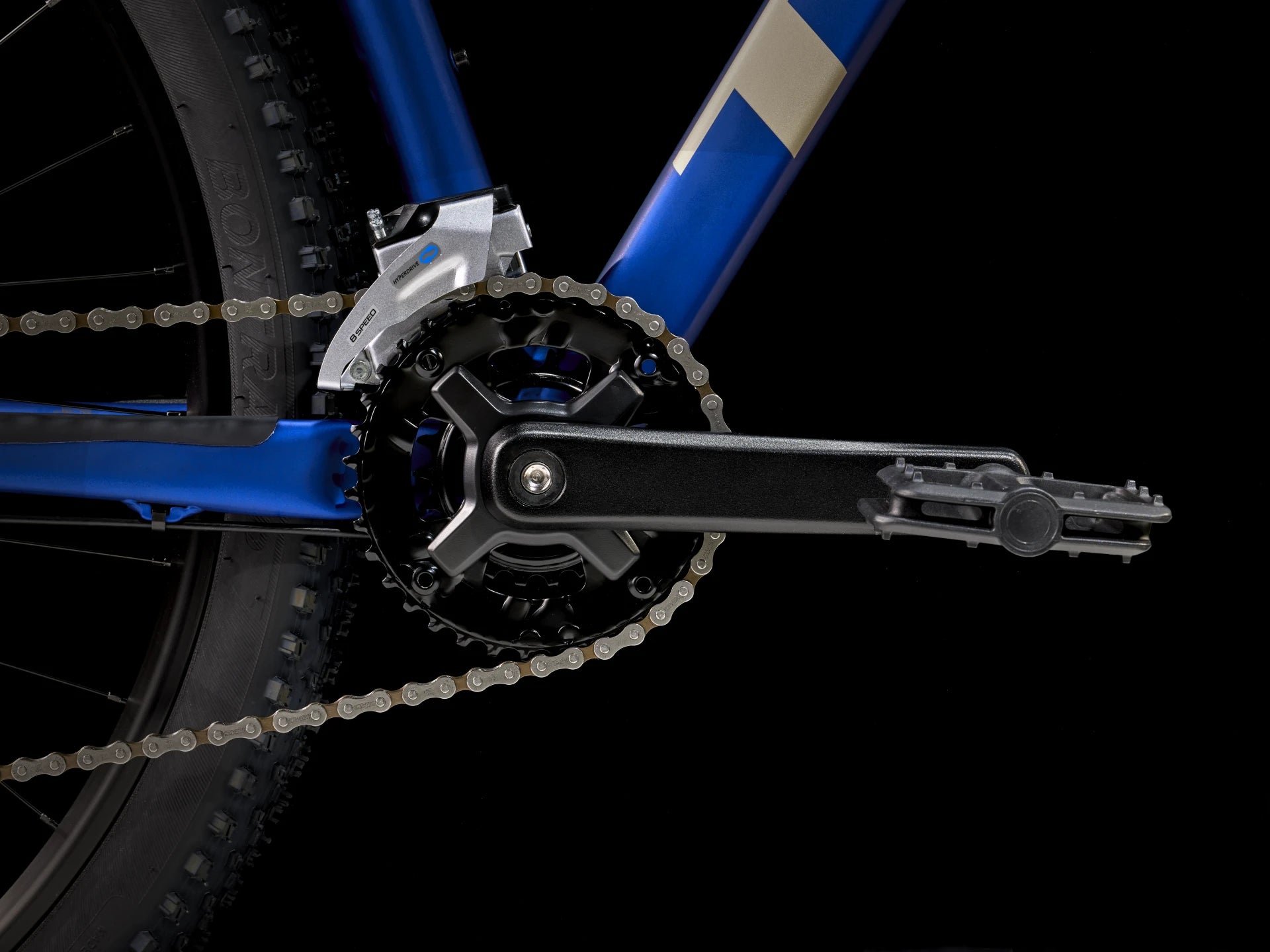

*Crankset

Sizes: XS, S, M
Shimano Tourney TY301, 42/34/24, 170 mm length

Sizes: M, L, XL, XXL
Shimano Tourney TY301, 42/34/24, 175 mm length

*Bottom bracket

Size: XS, S, M, ML, L, XL, XXL
VP BC73, 73 mm, threaded cartridge

Size: XS, S, M, ML, L, XL, XXL
Sealed cartridge, 73mm

Cassette

Shimano TZ500, 14-28, 7 speeds

Chain

KMC Z7, 7 speeds

Pedal

VP-536, platform, nylon

Maximum tray size

1x/2x: 34T, 3x: 42T

Components

Saddle

Bontrager Arvada, steel rails, 138 mm wide

*Seatpost

Size: XS, S
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length

Size: M
Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length

Sizes: M, L, XL, XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

*Hanger

Size: XS, S
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width

Sizes: M, ML, L, XL, XXL
Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width

*Handles

Size: XS, S, M, ML, L, XL, XXL
Bontrager XR Endurance Comp

Size: XS, S, M, ML, L, XL, XXL
Bontrager XR Endurance Comp, lock-on

*Gallows

Size: XS
Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 50 mm length

Size: S
Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 60 mm length

Size: M
Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 70 mm length

Size: M, L
Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 80 mm length

Size: XL, XXL
Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 90 mm length

Steering game

Semi-integrated, 1.125 inch

*Brake

Size: XS, S, M, ML, L, XL, XXL
Tektro MD-M280 mechanical discs, 160 mm

Size: XS, S, M, ML, L, XL, XXL
Tektro MD-M281 mechanical, 160 mm disc

Weight

Weight

M - 14.40 kg

Maximum weight

This bike has a maximum total weight limit (bike, cyclist and luggage) of 136 kg.

We reserve the right to modify the information on this site at any time without notice, including information regarding equipment, specifications, models, colors, materials, and prices. Due to supply issues, some compatible parts may be substituted at any time without prior notice.

The weights of the bicycles and frames are those of the pre-production painted frames at the time of publication. Weights may vary in final production.
Trek | Marlin | 4 - 2nd gen. 24-25
  • Overview
  • Specifications

Specifications

Frame
Aluminium
Fork
SR Suntour XCE 28 (100 mm travel)
rear derailleur
Shimano Tourney TY300
front derailleur
Shimano Altus M315
Cassette
Shimano TZ500 14-34 (7-speed)
Tires
Bontrager? Actually spec says 29×2.20″
Size
29"
Tire width
29
Brakes
Tektro MD-M280 or MD-M281 mechanical disc brakes
Weight
14.6 kg
