Trek | Fuel | EX 5 Deore 2022-23
- Regular price
- $2,599.99 CAD
- Sale price
- $2,599.99 CAD
- Regular price
-
$3,499.99 CAD
Couldn't load pickup availability

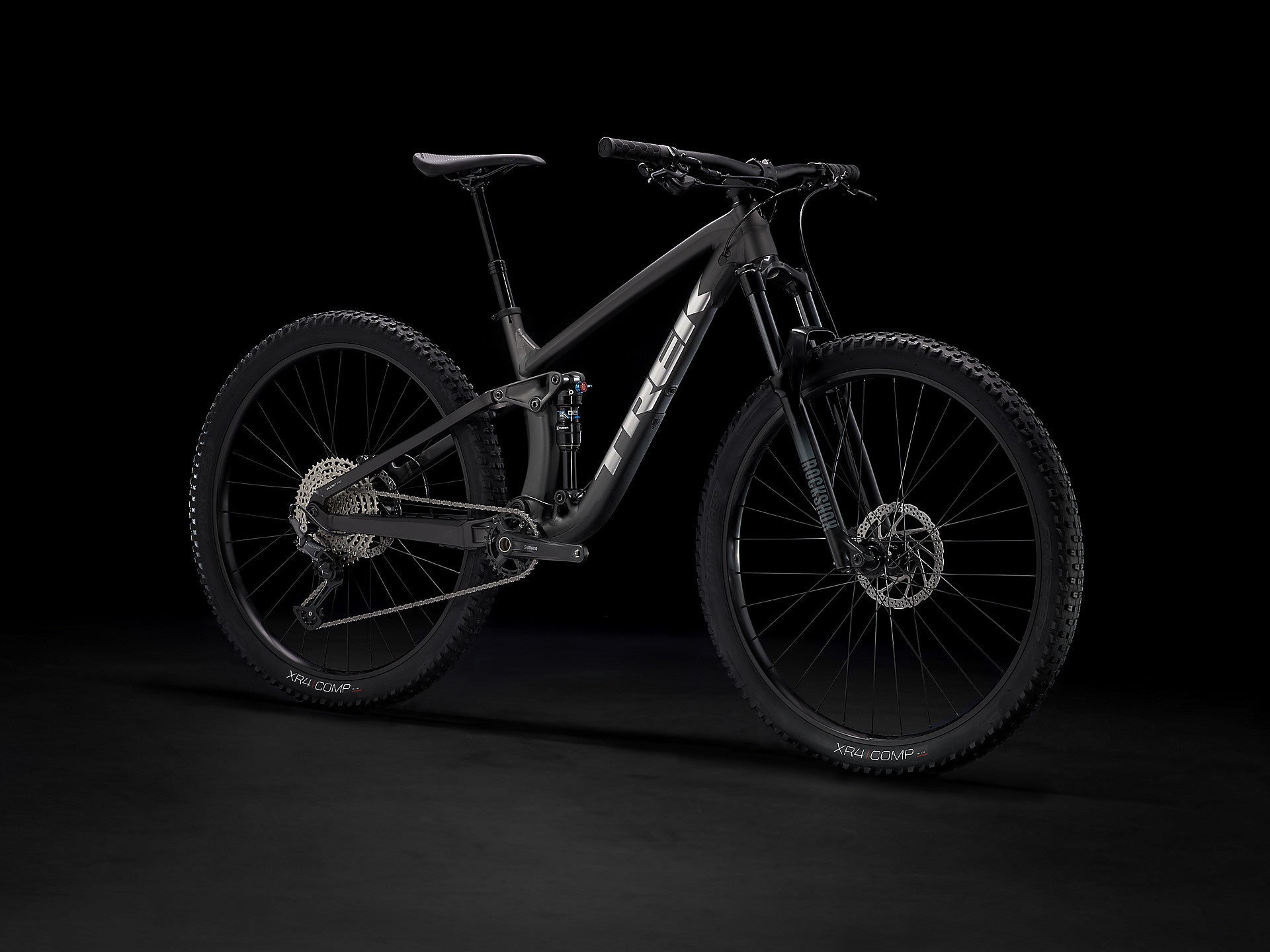

The Fuel EX 5 is your entry point into the world of full-suspension trail bikes. Front and rear suspension for taming the trail, a Shimano 1x12 drivetrain, a dropper seatpost for improved attack position on descents, and Shimano hydraulic disc brakes make the Fuel EX 5 an excellent value, high-performance, and exceptionally versatile mountain bike.
This is suitable for you if...
You're ready to upgrade to full suspension and are looking for a versatile trail bike that offers excellent value. You want a confident, capable, and responsive bike so you never lose control, wherever you ride.
Technologies offered
A lightweight aluminum frame with a Straight Shot downtube for added stiffness on rough sections and a Knock Block head tube stop to protect the frame from handlebar impacts. A 140mm RockShox Recon RL fork, 130mm of rear travel with an X-Fusion Pro 2 shock, a durable 12-speed Shimano Deore drivetrain, a dropper seatpost, and hydraulic disc brakes.
The last word
You get the performance of a full-suspension bike without the hefty price tag. The Fuel EX 5 incorporates the same frame technologies as the higher-end Fuel EX models, using aluminum alloy, and features carefully selected components to keep the price reasonable without compromising the riding experience.
Why you'll love it
- You get a top-of-the-range bike at an excellent price/performance ratio, with a frame that has features like Boost148 and ABP for confidence in control and the ability to buy superior components as your technique improves.
- It displays the capabilities of much more expensive trail bikes: it speeds along singletracks and can even occasionally take part in cross-country or enduro races.
- Thanks to the telescopic seat post, you can lower the saddle on the fly so that you can easily adopt your attacking position on descents.
- The RockShox DebonAir fork is characterized by its easy adjustability to suit the rider's weight. And it's lighter than a coil spring suspension.

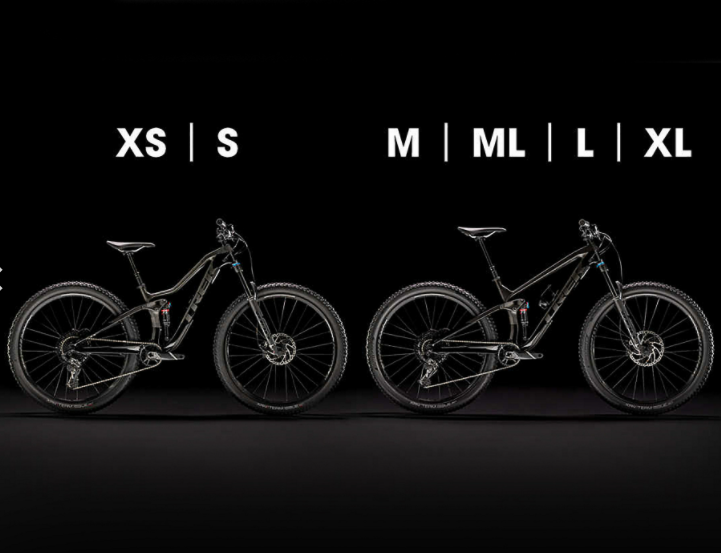

- We've expanded the size range to ensure a better fit for all riders. And you get the fastest wheels suited to your frame: XS frames come with 27.5-inch wheels, S frames are available with 27.5-inch or 29-inch wheels, and sizes M to XL come with 29-inch wheels.
Features
* Specifications apply to all sizes unless otherwise stated
| Frame | Alpha Platinum aluminum, tapered head tube, Knock Block, Control Freak internal routing, downtube protection, ISCG 05, magnesium rocker arm, Mino Link, ABP, Boost148, 130mm travel |
|---|---|
| *Fork | Size: XS, S RockShox Recon Silver fork, DebonAir spring, Motion Control damper, lockout, tapered steerer, 46mm offset, Boost110, Maxle Stealth suspension, 140mm travel |
| Sizes: S, M, ML, L, XL RockShox Recon Silver, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, Maxle Stealth, 140mm travel |
|
| *Shock absorber | Size: XS, S X-Fusion Pro 2, 2-position shock absorber, 210x52.5 mm |
| Sizes: S, M, ML, L, XL X-Fusion Pro 2, 2-position shock absorber, 210x55 mm |
|
| Maximum compatible fork travel | 150mm (561mm axle-to-crown) |
| *Rear wheel | Size: XS, S Alex MD35 rim/MST148A Boost hub, 27.5'', 32H, 14 Gauge Spokes, Micro Spline Freehub, Black rim graphics, spokes, and nipples |
|---|---|
| Sizes: S, M, ML, L, XL Alex MD35 rim/MST148A Boost hub, 29'', 32H, 14 Gauge Spokes, Micro Spline Freehub, Black rim graphics, spokes, and nipples |
|
| Front hub | Bontrager, alloy, 6-hole, Boost110, 15mm thru-axle |
| *Rear hub | Size: XS, S, M, ML, L, XL Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub body, Boost148, 12mm thru axle |
| Size: XS, S, M, ML, L, XL Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub body, Boost148, 12mm thru axle |
|
| Rear wheel lock | Bontrager Switch thru-axle, removable lever |
| Rim | Alex MD35, tubeless compatible, 32 holes, 35 mm width, Presta valve |
| Rays | 14g stainless steel |
| *Tire | Size: XS, S Bontrager XR4 Comp, wire bead, 30 tpi, 27.5x2.6 inches |
| Sizes: S, M, ML, L, XL Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.6 inches |
|
| Rim tape | Bontrager TLR |
| Maximum tire size | Frame: 29x20.6 inches Fork: See manufacturer |
| Gear shift | Shimano Deore M6100, 12 speed |
|---|---|
| rear derailleur | Shimano Deore M6100, long cage |

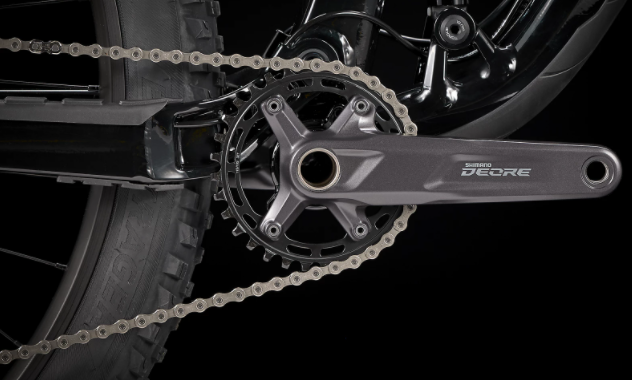

| *Crankset | Sizes: XS, S, M, ML, L Shimano MT511, 30T steel chainring, Boost, 170mm length |
| Size: M, ML, L, XL Shimano MT511, 30T steel chainring, Boost, 175mm length |
|
| Bottom bracket | Shimano MT500, 92mm, PressFit |
| Cassette | Shimano Deore M6100, 10-51, 12 speed |
| Chain | Shimano Deore M6100, 12 speed |
| Maximum tray size | 34T |

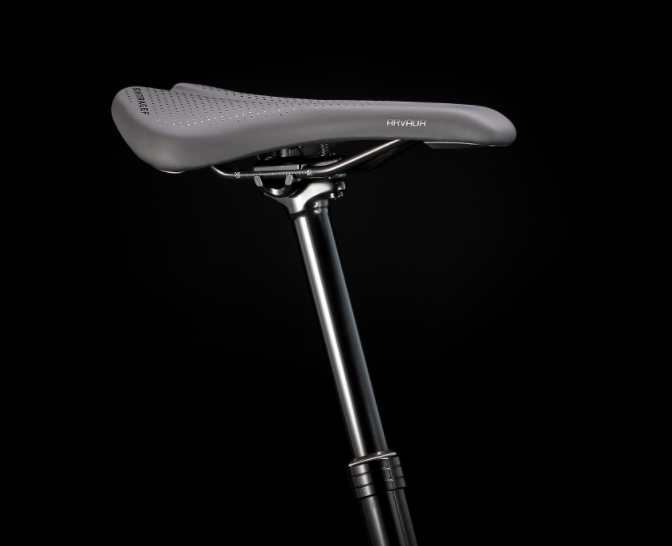

| Saddle | Bontrager Arvada, steel rails, 138 mm wide |
|---|---|
| *Seatpost | Size: XS, S TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm diameter, 361 mm length |
| Size: M, ML, L, XL TranzX JD-YSP18, 130 mm travel, internal routing, 31.6 mm diameter, 425 mm length |
|
| Hanger | Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Handles | Bontrager XR Trail Comp, nylon lock-on |
| Gallows | Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 50mm length |
| Steering game | Integrated knock block, 58° radius, cartridge bearing, 1.125 inch at the top, 1.5 inch at the bottom |

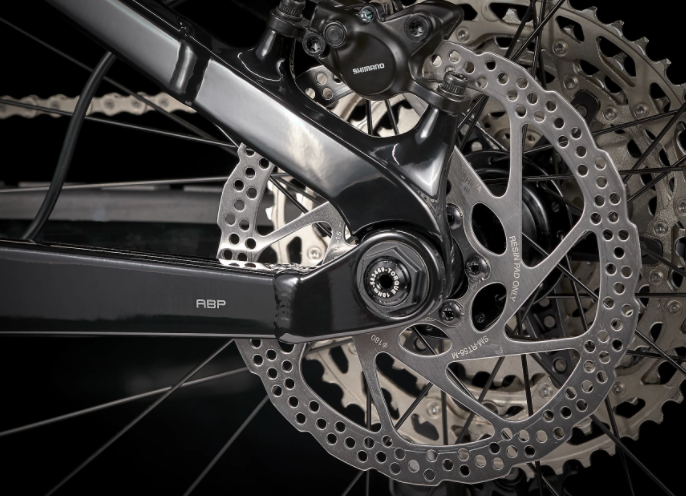

| Brake | Shimano, hydraulic disc brakes, MT201 lever, MT200 caliper |
| Brake disc | Shimano RT56, 6-hole, 180 mm |
| Weight | M - 34.61 lbs / 15.7 kg |
|---|---|
| Maximum weight | This bicycle has a maximum total weight limit (including the weight of the bicycle, rider and luggage) of 136 kg (300 pounds). |
