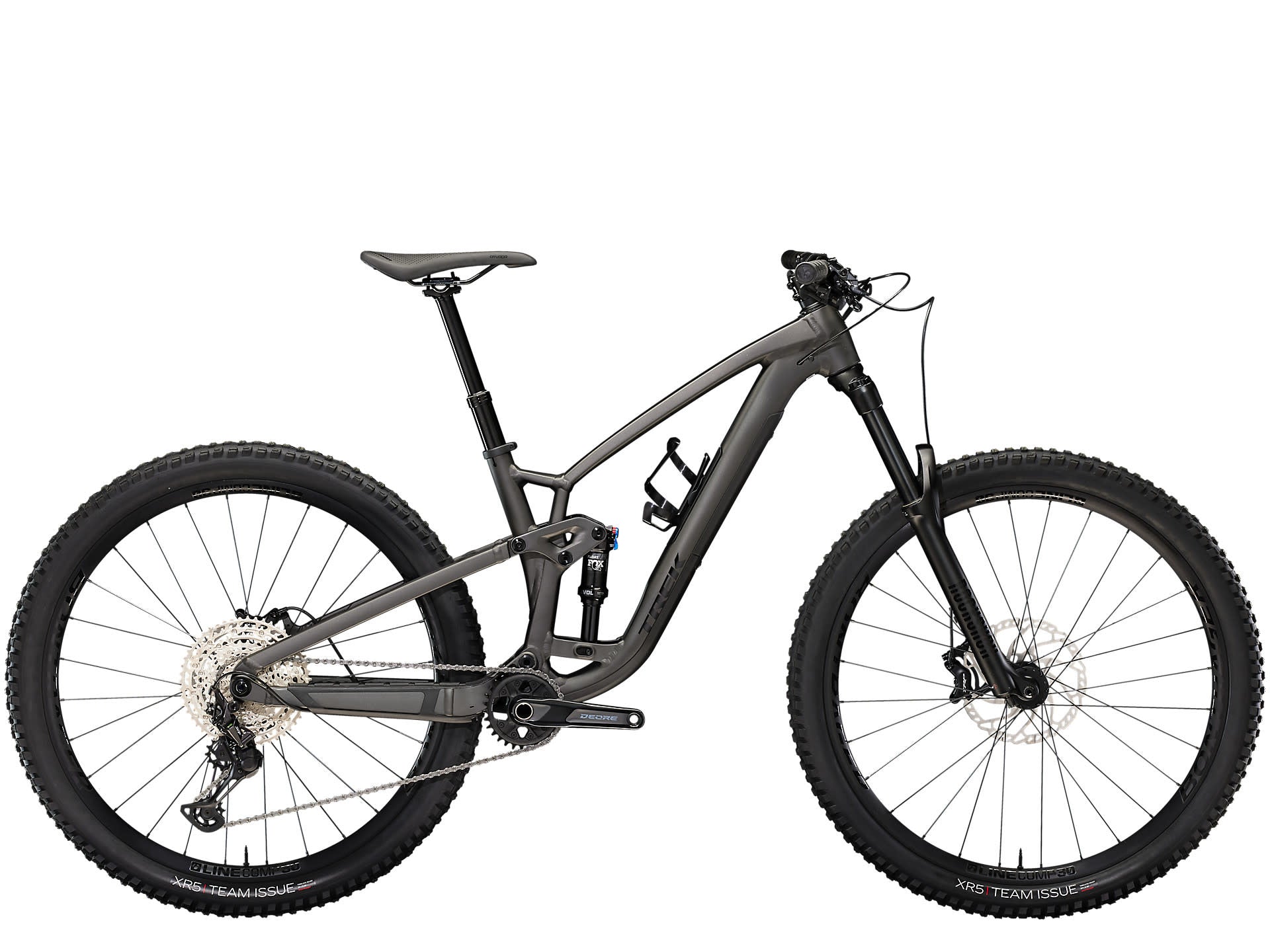

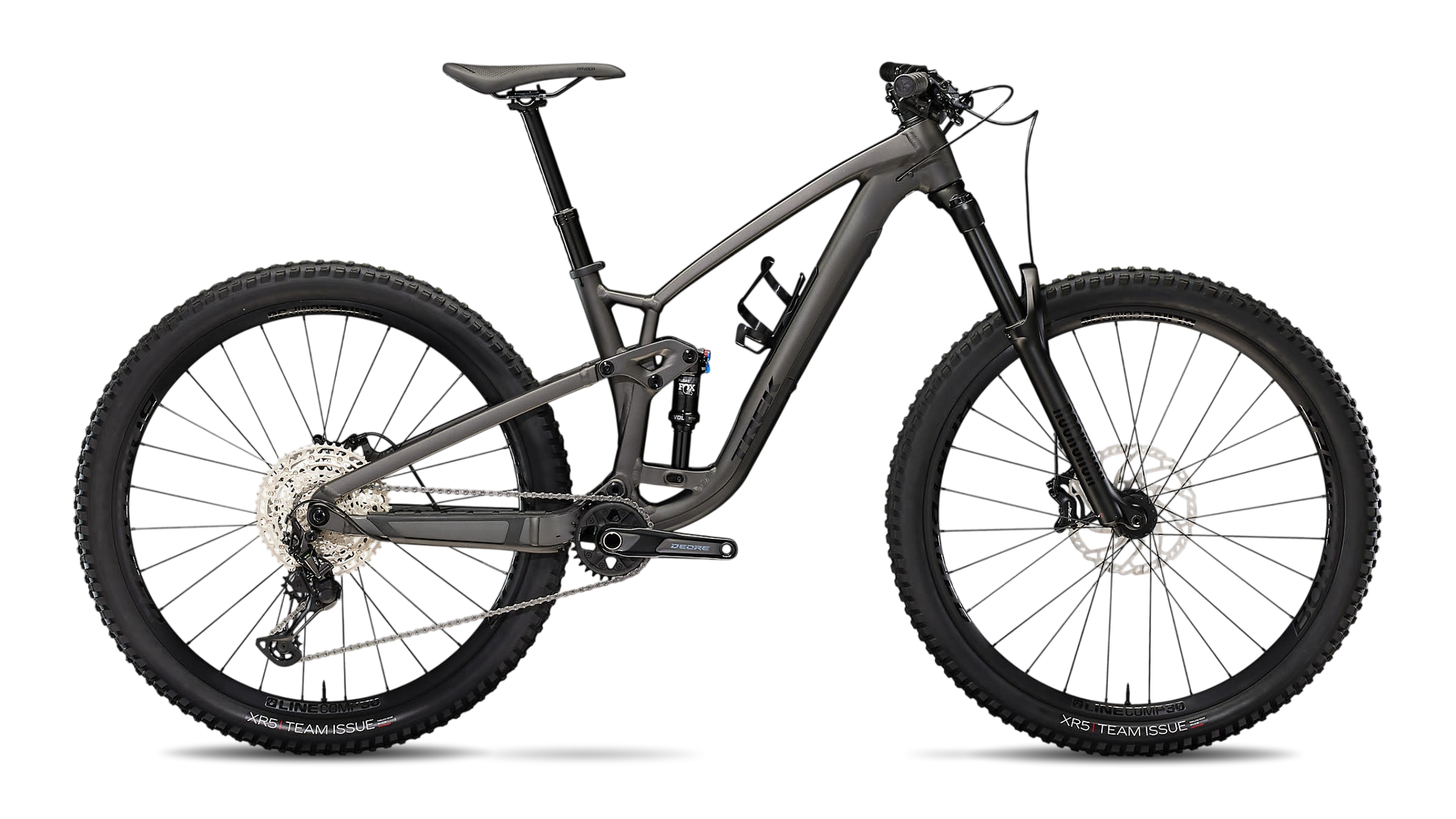

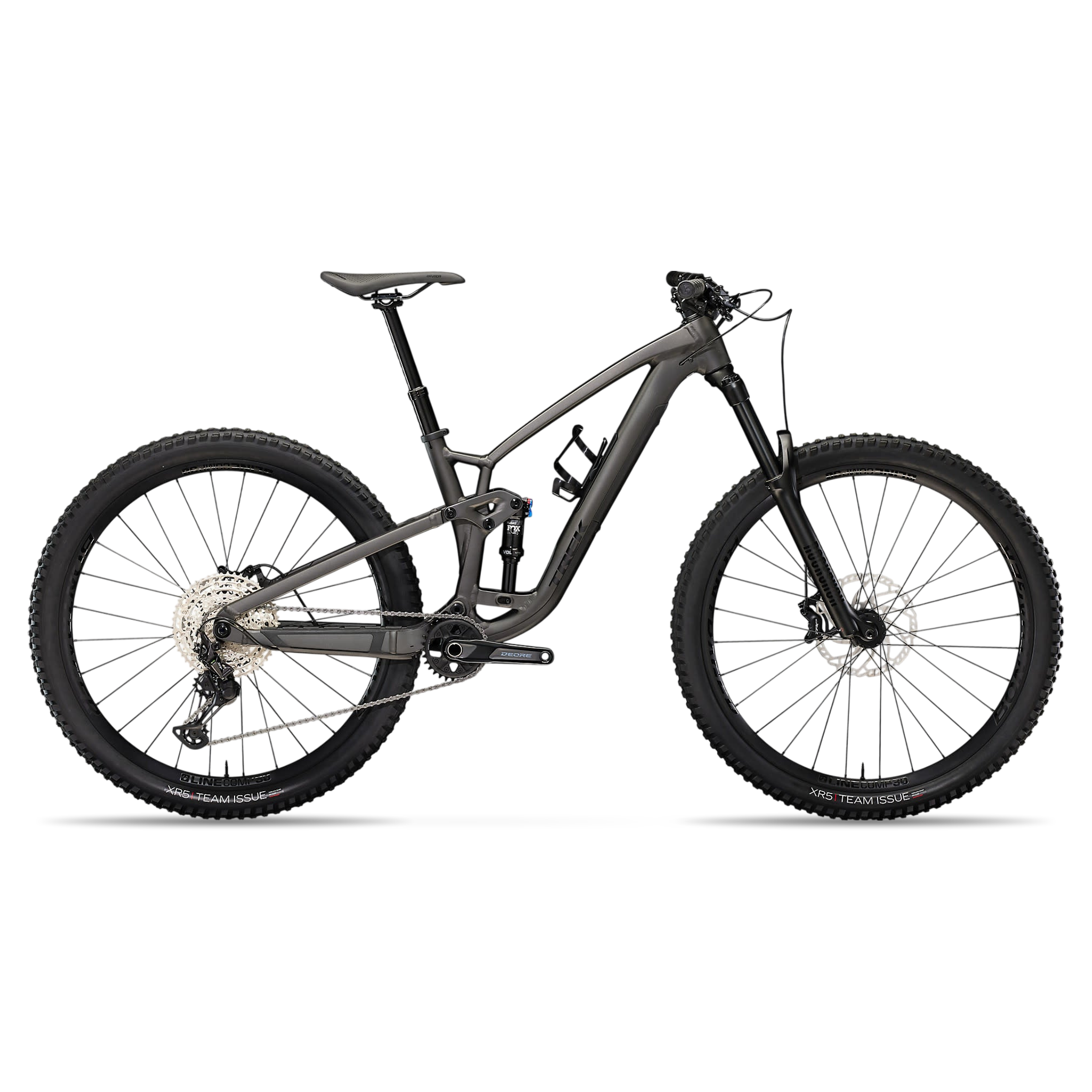

The Fuel EX 7 is a ready-to-go trail bike designed to devour singletrack. Upgraded suspension with 150mm of travel up front and 140mm in the rear smooths out rough and technical descents, while the lightweight aluminum frame maintains agility on climbs. New in-frame storage and adjustable geometry let you enjoy all the benefits of the carbon model at a fraction of the price. Tubeless wheels and a reliable Shimano 1x12 drivetrain complete this bike to ensure maximum trail fun.

1. You get all-mountain power with upgraded components ready to support your progression on the trails.
2. We offer more sizes to ensure a better fit for all riders, and each frame size comes with the wheels best suited to it: XS frames have 27.5-inch wheels, S frames are available with 27.5-inch or 29-inch wheels, and sizes M and above have 29-inch wheels.
3. The telescopic seatpost allows you to position yourself so you forget about the saddle when you're tackling corners and descents at full speed.

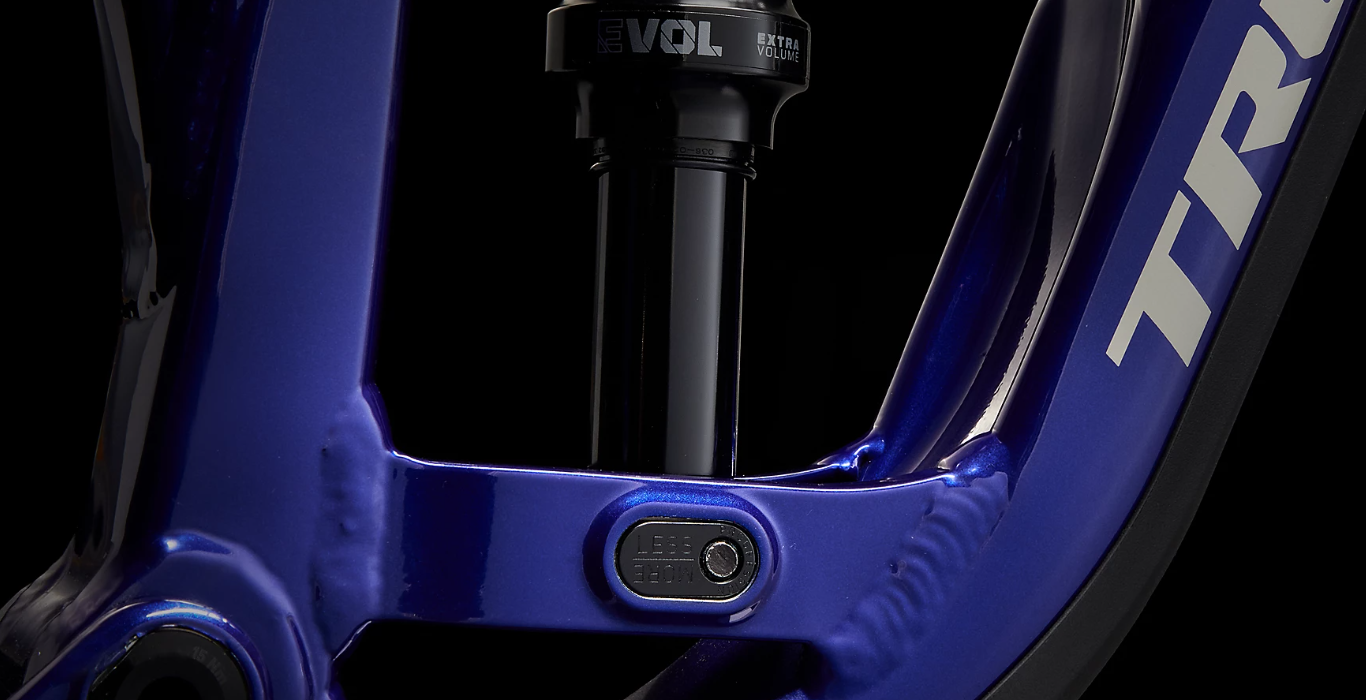

4. Thanks to the adjustable headset angle (angled cups sold separately) and Mino Link, you have a choice of six geometry configurations.
5. Guided internal routing, a universal derailleur hanger, improved hardware, and a threaded bottom bracket all simplify maintenance.

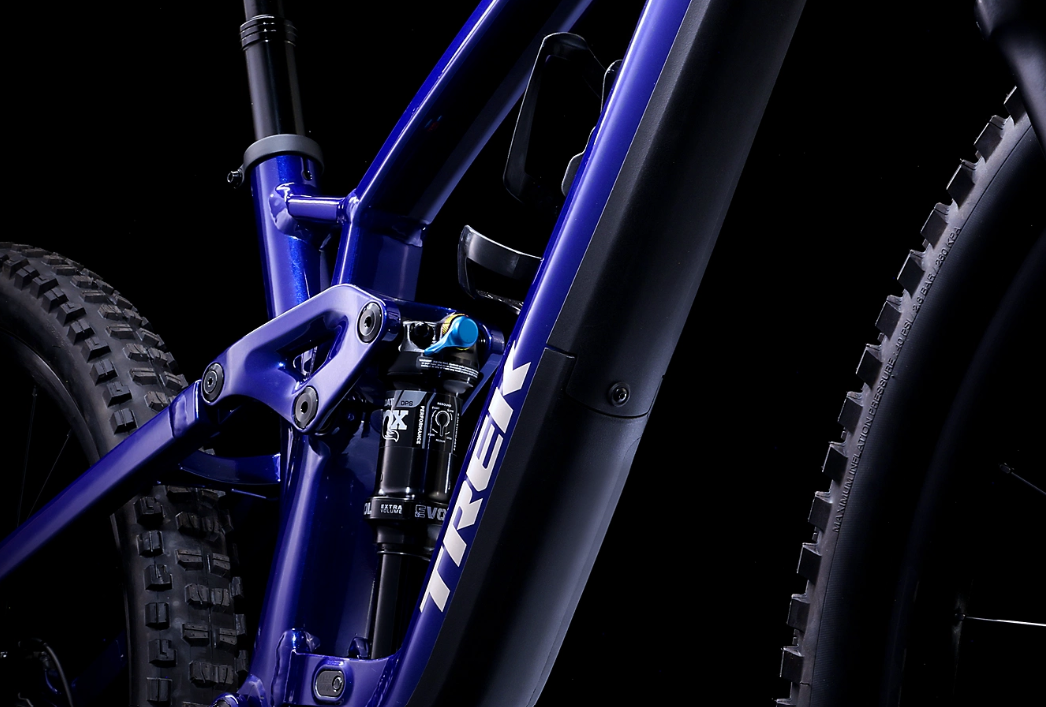

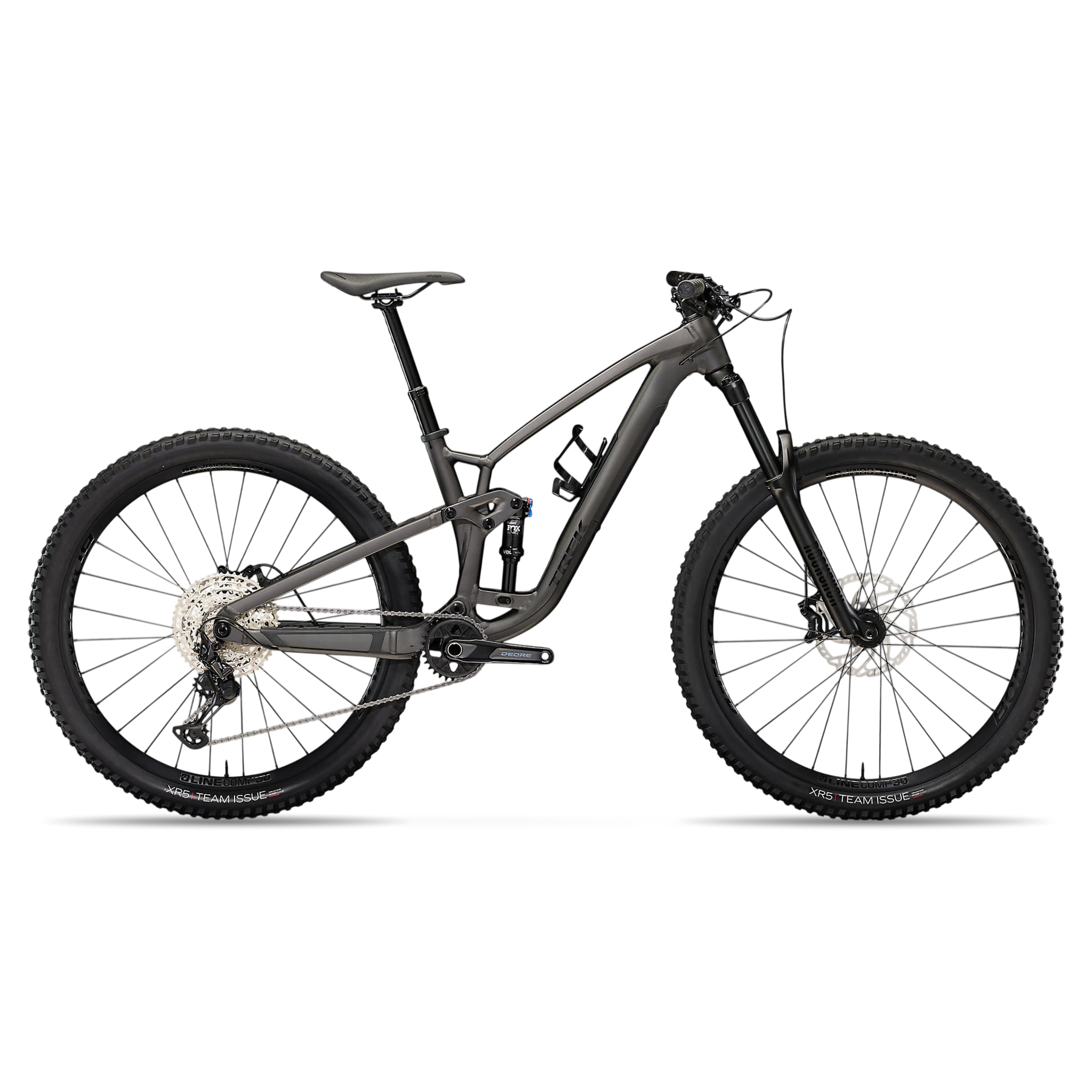

A lightweight full-suspension aluminum alloy frame with a 150mm RockShox Gold RL fork featuring a DebonAir spring for small bumps and a FOX Performance rear shock. It also boasts a Shimano SLX 1x12 drivetrain, wide Bontrager wheels with tubeless tires, and a dropper seatpost. A new adjustable geometry lets you customize your setup.

For the all-mountain enthusiast, the Fuel EX 7 is perfect. Its capable geometry prepares it for the mountains, while the superior suspension and drivetrain will allow you to ride all day.

Description

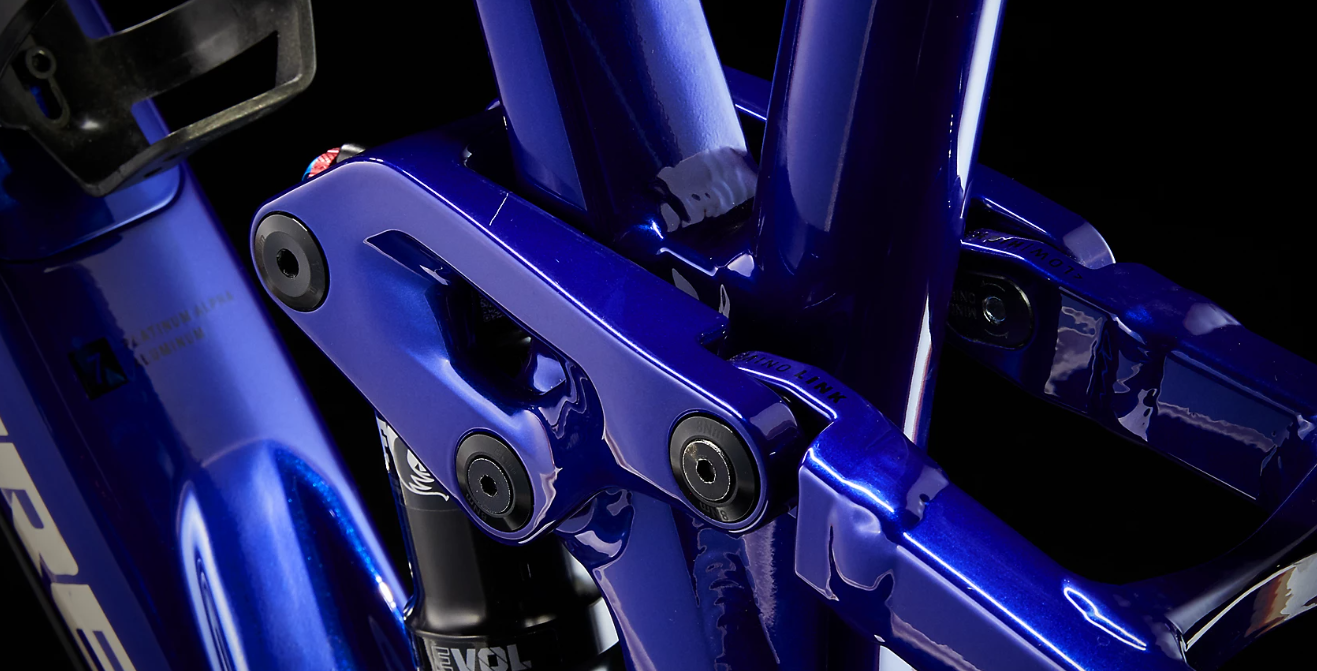

• Frame: Alpha Platinum Aluminum, internal storage, angle-adjust headset, variable geometry via Mino Link, adjustable leverage ratio, guided internal cable routing, magnesium rocker arm, 34.9 mm seat tube, ISCG 05, 55 mm chainline, BSA 73, downtube protector, ABP, UDH, Boost148, 140 mm travel
• Fork: RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, Boost110, Maxle Stealth 15mm, 150mm travel

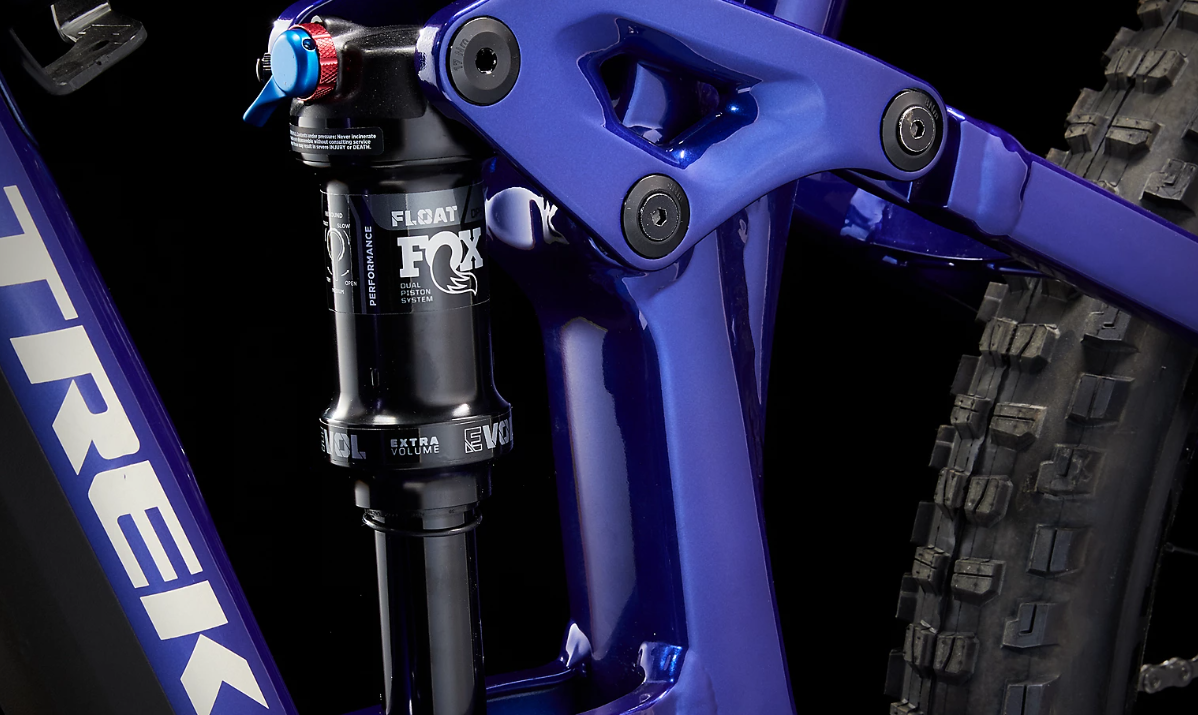

• Shock: Fox Performance Float EVOL, 3-position DPS shock, tuned by Trek Suspension Lab, 185x55 mm
• Front wheel: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
• *Rear wheel: Size: XS, S -- Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12mm thru axle
• *Rear wheel: Size: S, M, ML, L, XL, XXL -- Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
• Front hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru-axle
• *Rear hub: Size: XS, S -- Bontrager aluminum, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub body, Boost148, 12mm thru axle
• *Rear Hub: Size: XS, S --Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub body, Boost148, 12mm thru axle
• Rear wheel lock: Bontrager Switch thru-axle, removable lever
• Rim: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
• *Tire: Size: XS, S -- Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5x2.50 inches
• Size: S, M, ML, L, XL, XXL: Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.5 inches
• Tire part: Bontrager TLR sealant, 177 ml
• Rim tape: Bontrager TLR
• Gear shifter: Shimano SLX M7100, 12 speeds

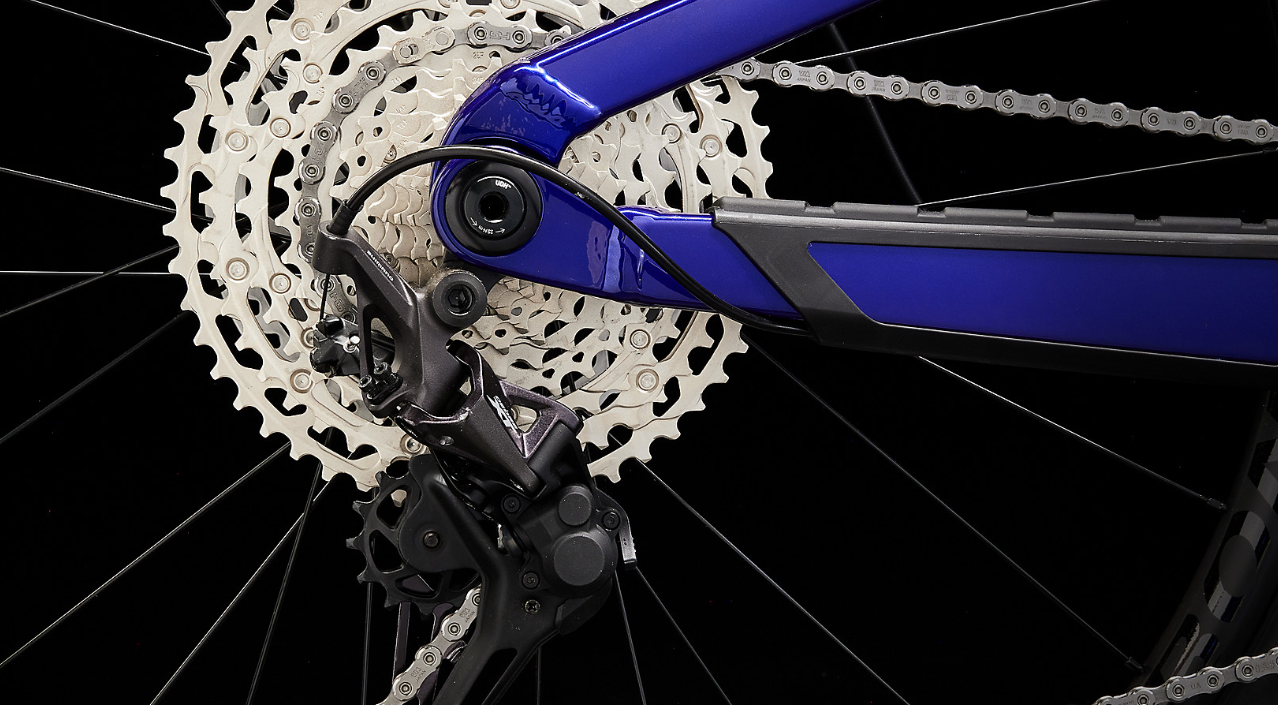

• Rear derailleur: Shimano XT M8100, long pulleys
• Crankset: Shimano Deore M6120, 30T chainring, 55mm chainline, 170mm length
• Bottom bracket: Shimano BB-MT501 BSA
• Cassette: Shimano Deore M6100, 10-51, 12 speed
• Chain: Shimano Deore M6100, 12 speeds
• Saddle: Bontrager Arvada, steel rails, 138 mm width
• *Seatpost: Size: XS, S -- TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length
• *Seatpost: Size: M, ML -- TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length
• *Seatpost: Size: L, XL, XXL -- TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm stem, 497 mm length
• Handlebar: Bontrager Rhythm Comp, Aluminum, 31.8 mm, 15 mm rise, 750 mm width
• Grips: Bontrager XR Trail Comp, nylon lock-on
• *Stem: Size: XS, S -- Bontrager Comp, 31.8 mm, Blendr compatible, 7 degrees, 35 mm length
• *Stem: Sizes: M, ML, L, XL, XXL -- Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree angle, 50 mm length
• Headset: Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, compatible with adjustable angle glass
• Brakes: Shimano, 4-piston, hydraulic disc, MT4100 lever, MT420 caliper

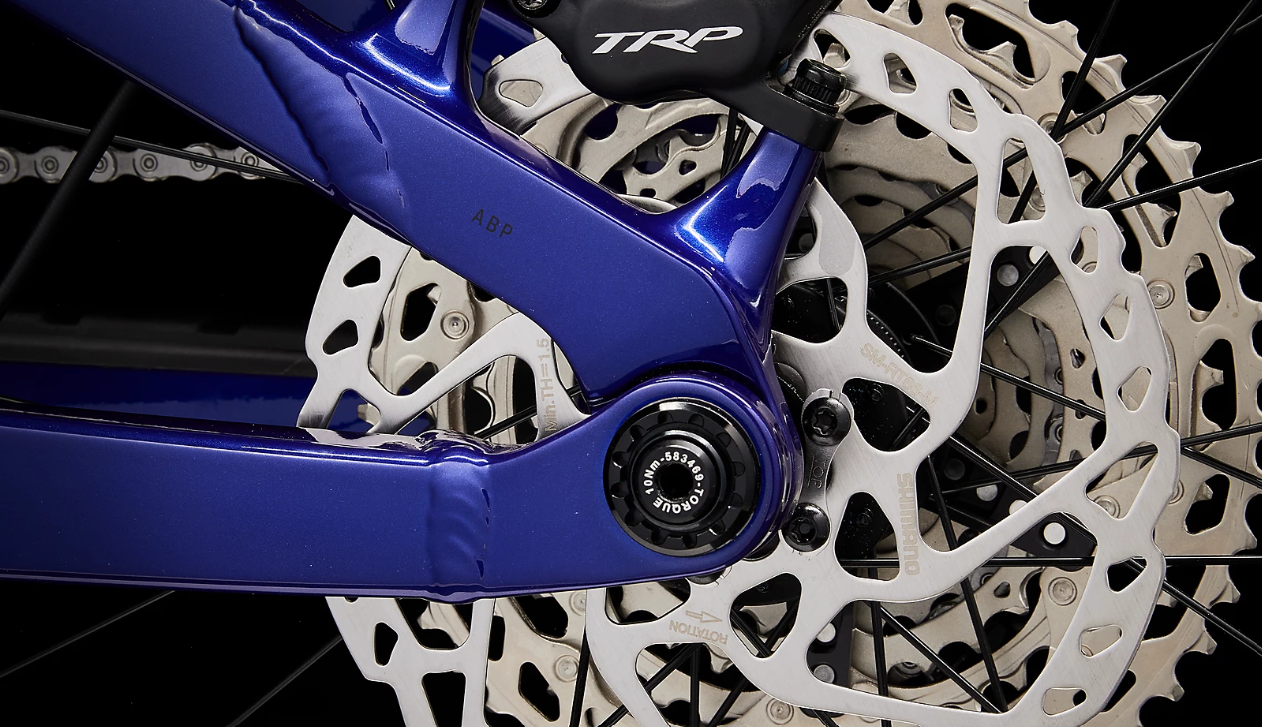

• *Brake disc: Size: XS, S, M, ML, L, XL, XXL -- Shimano RT66, 6-bolt, 180mm
• *Brake disc: Size: XS, S, M, ML, L, XL, XXL -- Shimano RT66, 6-bolt, 203 mm

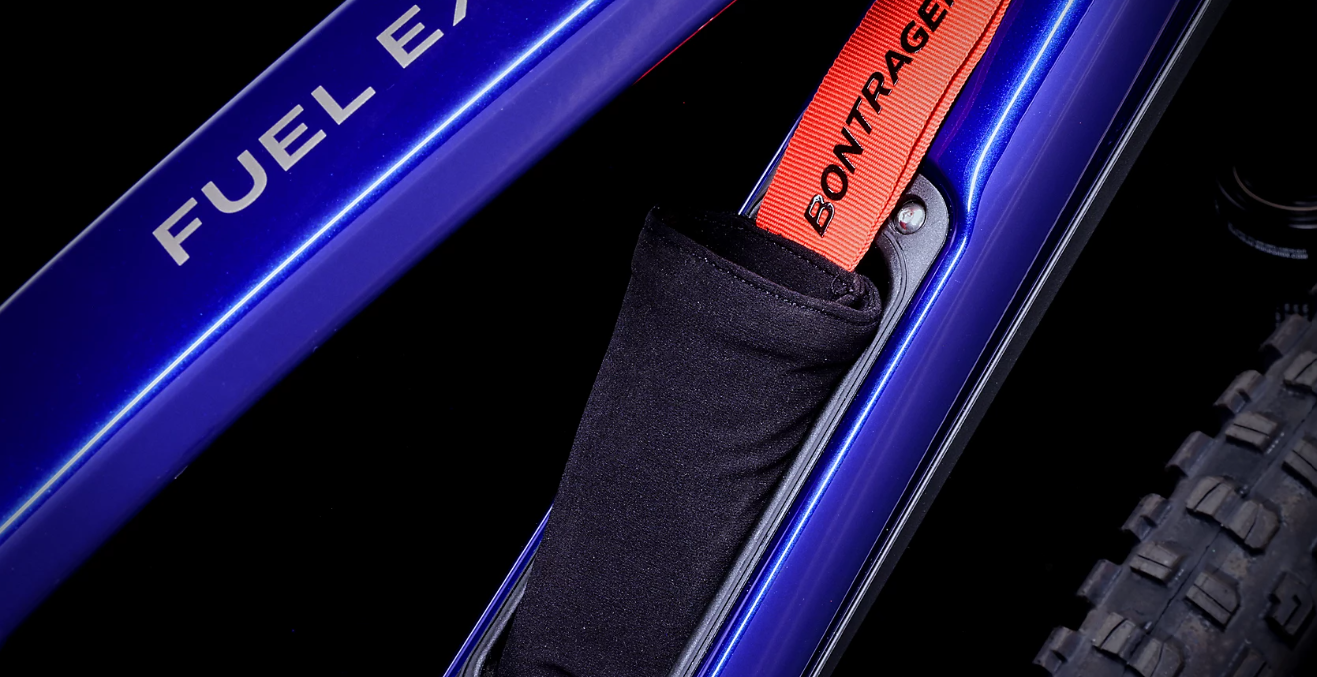

• Bag: Bontrager pouch for integrated BITS frame storage
• Weight: M - 15.97 kg (with TRL sealant, without inner tubes)
• Maximum weight: This bicycle has a maximum total weight limit (including the weight of the bicycle, rider and luggage) of 136 kg.
